Technical Specs
| Lever/Knob Design | ALP - Push/Pull Trim |
| Function | HPU65-Privacy Set |
| Product Type | Ligature Resistant Lock |
Product Specs
| Manufacturer | Sargent |
| SKU | 28-HPU-P-65 ALP 32D |
| Unit of Measure | Each |
| Installation | Commercial |
| Application | Ligature Resistant |

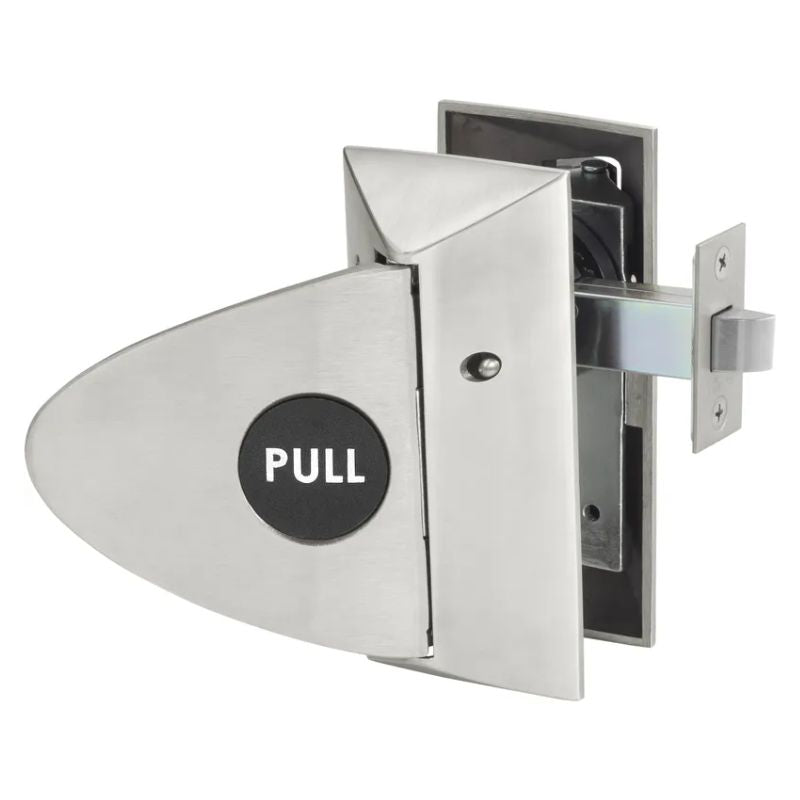

Sargent 28-HPU65-P-ALP-US32D Push/Pull Privacy Lock, 5" Backset, 4 7/8 ASA Strike, Labeled Push/Pull, HP Series Healthcare Hardware, 630 Satin Stainless Steel
The Sargent 28-HPU65-P-ALP-US32D Push/Pull Privacy Lock is equipped with a 5" backset and a 4 7/8 ASA strike for optimal security. This model also features a labeled push/pull design and is part of the HP Series Healthcare Hardware collection. Additionally, it is made of 630 satin stainless steel for a sleek and durable finish.
HPU65 Privacy Function:
- I/S paddle always retracts the latch
- O/S paddle retracts latch, except when locked by the inside push button
- Closing door unlocks the outside paddle
- Includes emergency release
- Ideal for bathrooms
- Vertical orientation required
Features:
- Paddle trim can be mounted in horizontal (up or down) or vertical (sideways) orientations in the field
- Easy installation
- 15 function trim is non-handed; lock body is easily field reversible
- Through-bolted trim for stability
- Available in 5" backset standard
- ANSI/BHMA Grade 1
- UL Fire Rating standard on doors up to 4' x 8'
- Torx ® and spanner screws optional with ALP
- Lead lining is optional: specify 74- option
- Covers and paddles are cast stainless steel or brass
- Patent Pending
