Sargent 28 Series Trims for 30 Series Exit Devices

  • SKU: 814HTBEN
$335.00/ea
In Stock
In Stock
Exit Trim: 814-HTB
Finish: EN Aluminum Enamel (689)

All 28 Series Trims work with all 30 Series Exit Devices.

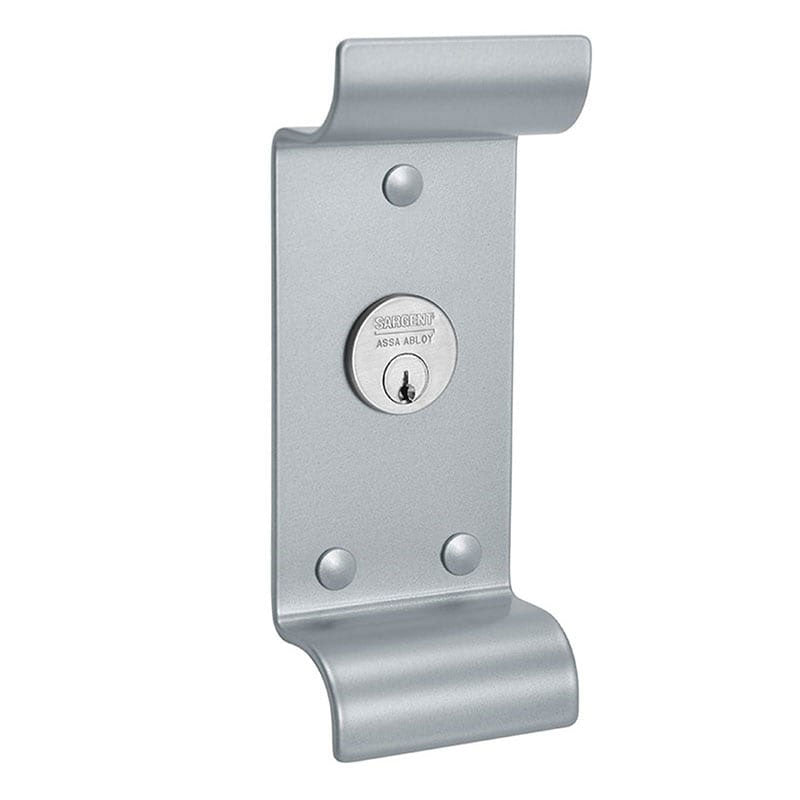

The Sargent 814-HTB is an Exit Device Pull Trim in Night Latch Function, comes with an LA Keyway that is Keyed Random, and comes with 2 Keys. Sargent 814-HTB is for use with the Sargent 30 Series Exit Devices and is available in EN  Aluminum Enamel, and EB Bronze Enamel to Match 10B finishes.

  • Outside by pull and key.
  • For 1-3/4" (44mm) doors only
  • Through-Bolted with 3 Mortise Nuts
  • Pull Projects 1-1/2" (38mm) from Door Face
  • Cylinder included (LA keyway)

Sargent 814-HTB Night Latch Function Chart

Product Specs

Manufacturer Sargent
SKU 814-HTB
Unit of Measure Each



Technical Specs

Trim Type Nightlatch Pull
Trim Design HTB
Fire Rated No
Core  Included
Keyway LA Keyway, Keyed Random
Product Type Exit Device Trim

The Sargent 28-C-LL Classroom Lever Exit Device Trim has an L-Rose, an L-Lever, comes with an LA Keyway that is Keyed Random, and comes with 2 Keys. The Sargent 28-C-LL is for use with the Sargent 30 Series Exit Devices and is available in US26D Satin Chrome, BSP Black Suede Powder Coat, US10B Oxidized Dull Bronze, and US10BE Dark Oxidized Satin Bronze equivalent finishes.

  • Key in lever locks or unlocks lever
  • Cylinder included (LA keyway)
  • LL lever design
  • For 1-3/4" (44mm) doors only
  • Not handed
  • Trim will not retrofit on devices purchased prior to 2000. Consult factory.

Sargent 28-C-LL Function Chart

Product Specs

Manufacturer Sargent
SKU 28-C LL
Unit of Measure Each



Technical Specs

Trim Type Classroom Lever
Trim Design L -Lever
Fire Rated No
Product Type Exit Device Trim

The Sargent 28-C-OB Classroom Knob Exit Device Trim has an O-Rose, a B-Knob, comes with an LA Keyway that is Keyed Random and comes with 2 Keys. The Sargent 28-C-OB is for use with the Sargent 30 Series Exit Devices and is available in US26D Satin Chrome,  US10B Oxidized Dull Bronze, and US10BE Dark Oxidized Satin Bronze equivalent finishes.

  • Key in lever locks or unlocks lever
  • Cylinder included (LA keyway)
  • B Knob design
  • For 1-3/4" (44mm) doors only
  • Not handed

Sargent 28-C-OB Entrance Function Chart

Product Specs

Manufacturer Sargent
SKU 28-C OB
Unit of Measure Each



Technical Specs

Trim Type Classroom Knob
Trim Design B -Knob
Fire Rated No
Product Type Exit Device Trim
Product Cut Sheet
