Certifications
|
ANSI:
|
Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
|
|
UL:
|
UL listed to U.S. and Canadian safety standards
Conforms to standards UL 10C and UBC 7-2 (1997)
|
Specifications
|
For Doors:
|
1-3/8" (35mm) to 1-3/4" (44mm) thick standard For doors over 1-3/4" (44mm) consult the factory (2-1/4" Thick door max)
|
|
Door Prep:
|
Fits 161 (standard) cutouts and Fits 160 with a 2-3/8" (60mm) backset with 1"(25mm) front and 1-3/8"(35mm) thick door
|
|
Backsets:
|
2-3/4" (70mm) standard. 2-3/8" (60mm) optional (20- option)
|
|
Strike:
|
Wrought brass, bronze, or stainless steel
|
|
Bolt:
|
Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw
|
|
Cylinder:
|
Brass, 6-pin. 2 nickel silver keys
|
|
Master keying:
|
Can be master-keyed. Construction key system available
|
|
Front:
|
Wrought brass, bronze, or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
|
|
Hand:
|
Non handed, field reversible
|
|
Turn Lever:
|
Non-ferrous
|
|
Housing:
|
Non-ferrous, reinforced, one-piece 2-1/2" (64mm) diameter
|
|
LFIC options:
|
housing brass & zinc, two-piece.
Concealed screws on double cylinder function
|
|
Mechanical Options:
|
16- 400 T-shaped strike with strike box
20- 2-3/8" (60mm) backset. 2-3/4" (70mm) x 1" (25mm) wide front
28- 408 Flat lip strike ANSI A115.2
36- 6-Lobe security Head Screw
37- Spanner Head Screw
48- 488 Reinforced strike with 4 mounting screws and strike box
|

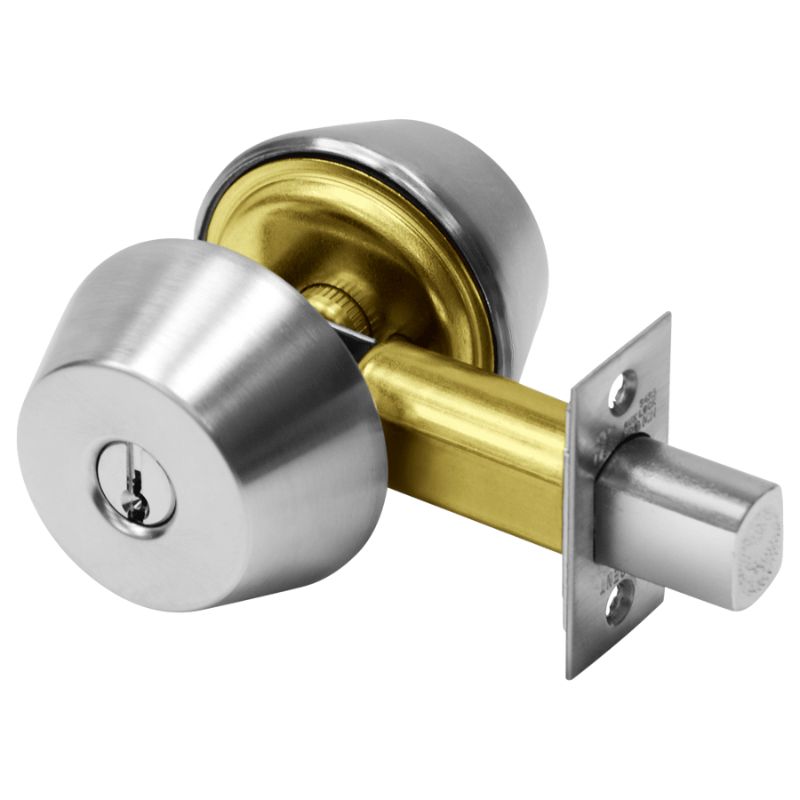

Sargent 484 Grade 1 Deadbolt - Double Cylinder w/Deadbolt
Sargent 484, 485, 487, 489
480 Series Deadbolt
Grade 1 - Heavy Duty
