Description

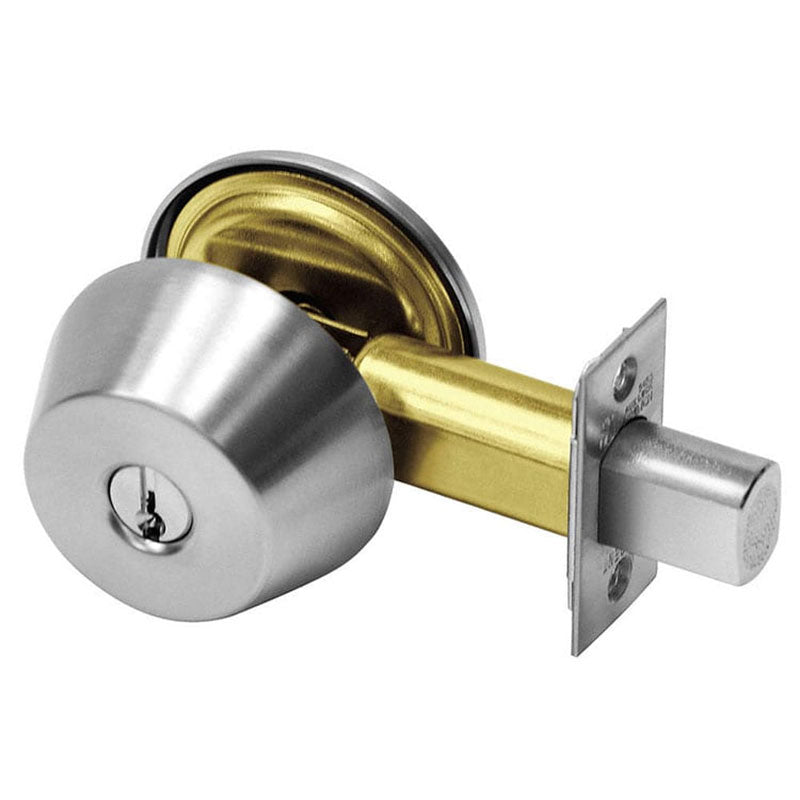

The Sargent 486-US26D-LA-KR is a Deadbolt Lock with a Single Cylinder on one side and a blank plate on the other. Sargent 486-US26D-LA-KR has an LA keyway that is Keyed Random, a 2 3/4" Backset, and comes in US26D Satin Chrome Finish.
Sargent 484, 485, 486, 487, 489
480 Series Deadbolt
Grade 1 - Heavy Duty
Specifications
| For Doors: | 1-3/8" (35mm) to 1-3/4" (44mm) thick standard For doors over 1-3/4" (44mm) consult factory (2-1/4" Thick door max) |
| Door Prep: | Fits 161 (standard) cut outs and Fits 160 with 2-3/8" (60mm) backset with 1"(25mm) front and for 1-3/8"(35mm) thick door |
| Backsets: | 2-3/4" (70mm) standard. 2-3/8" (60mm) optional (20- option) |
| Strike: | Wrought brass, bronze, or stainless steel |
| Bolt: | Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw |
| Cylinder: | Brass, 6-pin. 2 nickel silver keys |
| Master keying: | Can be master-keyed. Construction key system available |
| Front: | Wrought brass, bronze, or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard |
| Hand: | Non handed, field reversible |
| Turn Lever: | Non-ferrous |
| Housing: | Non-ferrous, reinforced, one-piece 2-1/2" (64mm) diameter |
| LFIC options: | housing brass & zinc, two pieces. Concealed screws on double cylinder function |
| Mechanical Options: | 16- 400 T shaped strike with strike box 20- 2-3/8" (60mm) backset. 2-3/4" (70mm) x 1" (25mm) wide front 28- 408 Flat lip strike ANSI A115.2 36- 6-Lobe security Head Screw 37- Spanner Head Screw 48- 488 Reinforced strike with 4 mounting screws and strike box |
Certifications
|
ANSI: |
Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike |
|
UL: |
UL listed to U.S. and Canadian safety standards |
Product Specs
| Manufacturer | Sargent |
| SKU | 486 26D LA KR |
| Unit of Measure | Each |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
Technical Specs
| Function | 486-Single Cylinder Deadbolt |
| ANSI Function |
E0160 - Cylinder x Blank Deadlock |
| Product Type | Deadbolts |
