Name: Sargent 487 Deadbolt Classroom Function, 2 3/4" Backset, Grade 1
Brand: SARGENT
SKU: LC487US26D
Price: 187.00 CAD
Availability: InStock

All SARGENT Products

Sargent 487 Deadbolt Classroom Function, 2 3/4" Backset, Grade 1

SKU: LC487US26D

All SARGENT Products

Certifications

ANSI:	Meets ANSI A156.5 Grade 1 requirements with 408 or 488 strike
UL:	UL listed to U.S. and Canadian safety standards Conforms to standards UL 10C and UBC 7-2 (1997)

Specifications

For Doors:	1-3/8" (35mm) to 1-3/4" (44mm) thick standard For doors over 1-3/4" (44mm) consult the factory (2-1/4" Thick door max)
Door Prep:	Fits 161 (standard) cutouts and Fits 160 with 2-3/8" (60mm) backset with 1"(25mm) front and 1-3/8"(35mm) thick door
Backsets:	2-3/4" (70mm) standard. 2-3/8" (60mm) optional (20- option)
Strike:	Wrought brass, bronze, or stainless steel
Bolt:	Solid steel with hardened steel pin insert and nickel silver plating 7/8" (22mm) x 5/8" (16mm) x 1" (25mm) throw
Cylinder:	Brass, 6-pin. 2 nickel silver keys
Master keying:	Can be master keyed. Construction key system available
Front:	Wrought brass, bronze, or stainless steel 2-1/4" (57mm) x 1-1/8" (29mm) with fixed bevel 1/8" (3mm) in 2" (51mm) furnished standard
Hand:	Non-handed, field reversible
Turn Lever:	Non-ferrous
Housing:	Non-ferrous, reinforced, one-piece 2-1/2" (64mm) diameter
LFIC options:	housing brass & zinc, two-piece. Concealed screws on double cylinder function
Mechanical Options:	16- 400 T-shaped strike with strike box 20- 2-3/8" (60mm) backset. 2-3/4" (70mm) x 1" (25mm) wide front 28- 408 Flat lip strike ANSI A115.2 36- 6-Lobe security Head Screw 37- Spanner Head Screw 48- 488 Reinforced strike with 4 mounting screws and strike box

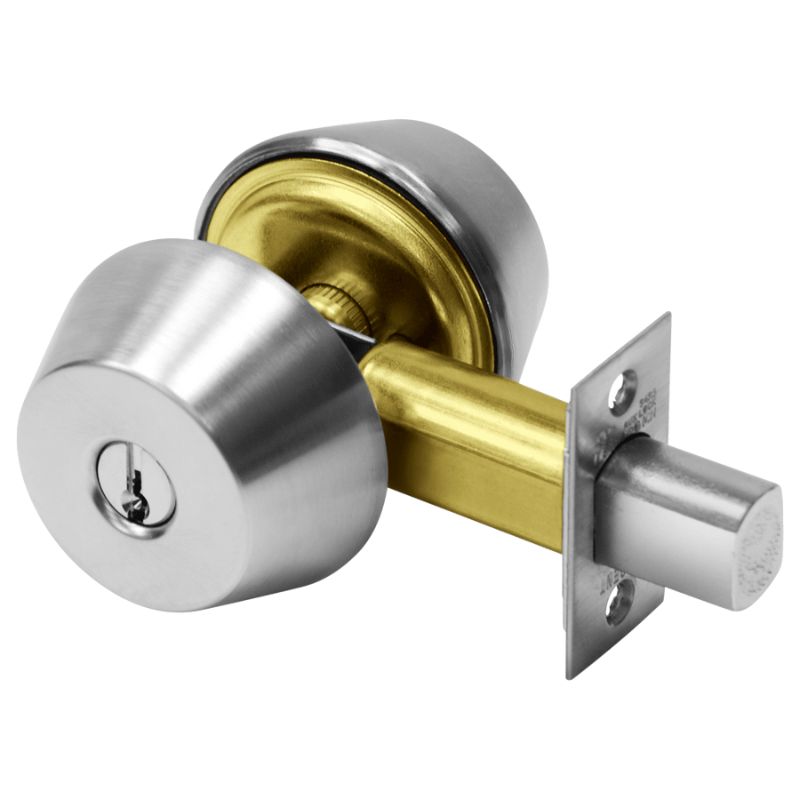

Sargent 487 Grade 1 Classroom Deadbolt Auxiliary Lock

The Sargent 487 single-cylinder classroom function heavy-duty deadbolt is suited for heavy-duty industrial and commercial applications. The classroom function deadbolt can be locked or unlocked from outside with a key. Turn lever inside retracts the deadbolt, but will not project it.
