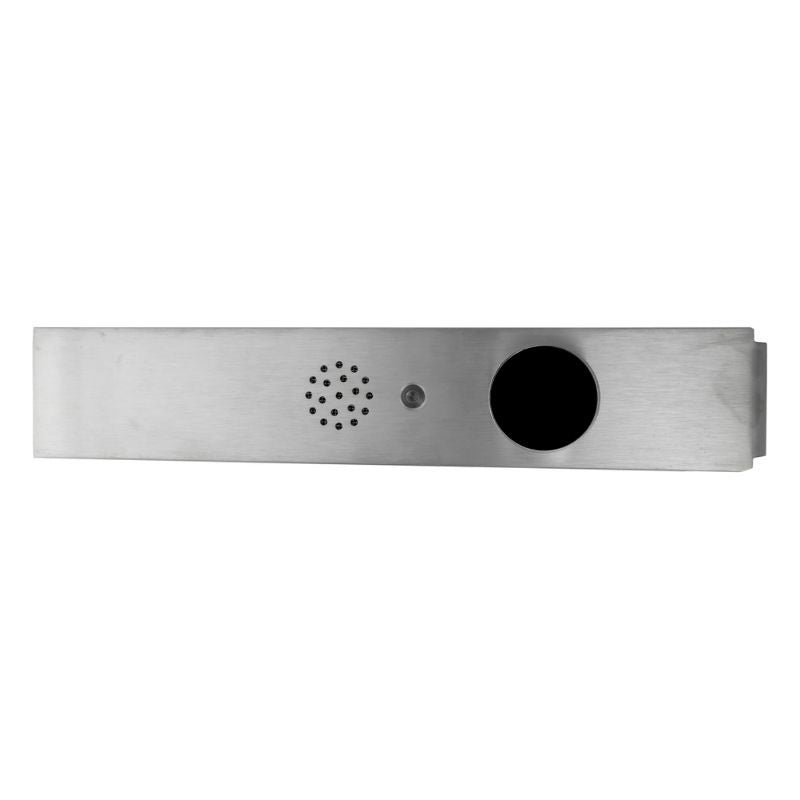

Sargent 545-1-32D, Alarm Retrofit Kit, For Exit device Series 8800, 8600, 8900 Only, Wide Rails, 36" Device, with #41 Mortise Cylinder, LA Keyway, Key Randomly, Satin Stainless Steel
For Sargent 36" F Wide-Rail Exit Devices, Series 8800, 8600, 8900 Only
With #41 Mortise Cylinder, LA Keyway, Key randomly
Sargent AL- Alarm Option
Designed for areas requiring a stand-alone alarm on outward swinging doors. This device has an integrated alarm in the push rail to discourage the unauthorized use of emergency exit doors. The alarm inside the rail sounds immediately upon exit. Ideal for rear exterior doors, doors leading to a rooftop, or anywhere security is a concern.
Features
Microprocessor-based alarm board
When armed, an alarm sounds immediately upon rail depression
All exit devices have tamper-resistant latching (Guarded Latch)
Battery powered – 9VDC
103 Db @ 8 ft pulsating horn
Flashing red LED provides visible violation indication, reset by key only
Low battery alert
Field selectable continuous alarm option-3267 Power Supply and 546 Harness recommended
Automatic re-arming option
Supplied with a #41 (1-1/8") with standard offset cam
UL Listed and cUL Listed
UL Listed to Canadian Safety Standards
Rail Monitoring & Guarded Latch are standard internal features
