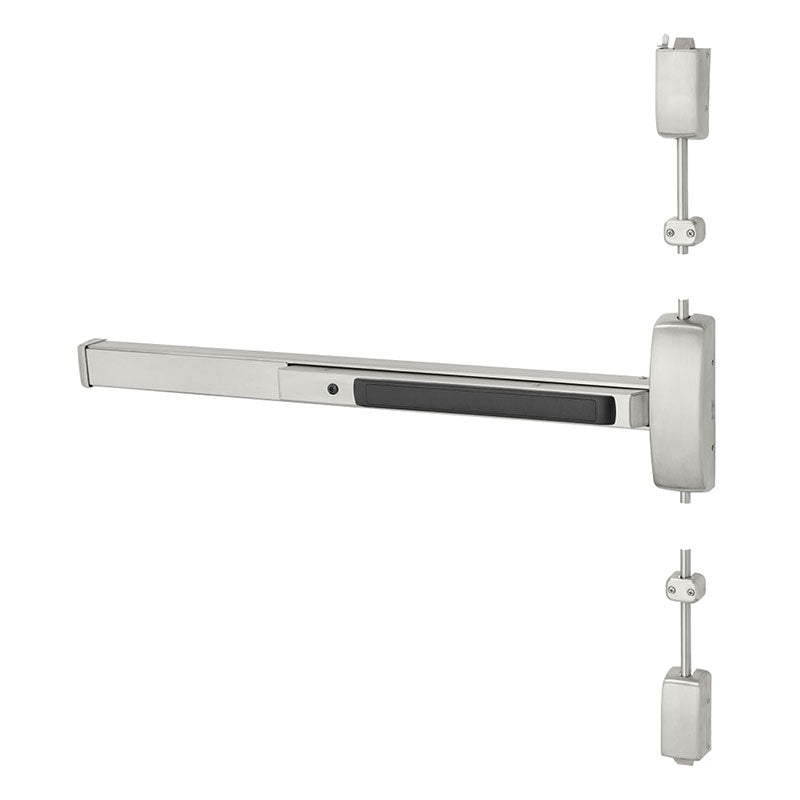

Sargent 55-12-8713-F-84, Fire Rated Surface Vertical Rod Exit Device, (55) Request to Exit Option, 84" Dr Height, 33"-36" Dr Widths

  • SKU: 55128713F84US10BLHR

Sargent 55-12-8713-F-84, Fire Rated Surface Vertical Rod Exit Device, (55) Request to Exit Option, 84" Dr Height, 33"-36" Dr Widths

  • SKU: 55128713F84US10BLHR
Sale price$3,562.00
Available (1‑2 Weeks)
1-2 Weeks Lead Time
  • LHR Left Hand Reverse
  • RHR Right Hand Reverse
Finish: US10B Oxidized Dull Bronze (613)
Handing: LHR - Left Hand Reverse
Choose Your Product Options:
Measurements system *
Height *
Weight *
Chest circumference *
Waist circumference *
Hips circumference *
Head circumference *

Technical Specs

Physical Appearance Wide Stile Pushpad
Device Type Surface Vertical Rod
Mechanical Function Lever Classroom
Device Length 36"
Hand RHR OR LHR
Top Strike 646
Strike Bottom 655
Includes Trim No
Minimum Stile Size 4-1/2" with Trim, 3-1/2" without Trim
Door Material Metal or Wood
Door Width 33" - 36"
Door Height 84 In.
Door Thickness 1-3/4" to 2-1/4"
Fire Rated Yes
Product Type Surface Vertical Rod Exit Devices

Product Specs

Manufacturer Sargent
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No


The Sargent 55-12-8713-F-84 Surface Vertical Rod Fire Rated Exit Device Key Locks Or Unlocks Outside Lever, has a Request to Exit Option, an 84" high rod and a 33"-36" rail length.

8700 Series Surface Vertical Rod Exit Devices

Has two-point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projection is adjustable through the center case.

  • Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix.  4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
  • Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
AI Recommendations & Insights
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What door thicknesses does the device support?
The device is designed for wood or metal doors with thicknesses ranging from 1-3/4" (44mm) to 2-1/4".
