Sargent 55-12-8713-G-84, Fire Rated Surface Vertical Rod Exit Device, (55) Request to Exit Option, 84" Dr Height, 43"-48" Dr Widths

SKU: 55128713G84US10BLHR

All SARGENT Products

Sargent 55-12-8713-G-84, Fire Rated Surface Vertical Rod Exit Device, (55) Request to Exit Option, 84" Dr Height, 43"-48" Dr Widths

SKU: 55128713G84US10BLHR

$3,562.00

Available (1‑2 Weeks)

1-2 Weeks Lead Time

Choose your options

Finish - US10B Oxidized Dull Bronze (613)

Quantity:

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Surface Vertical Rod
Mechanical Function	Lever Classroom
Device Length	48"
Hand	RHR OR LHR
Top Strike	646
Strike Bottom	655
Includes Trim	No
Minimum Stile Size	4-1/2" with Trim, 3-1/2" without Trim
Door Material	Metal or Wood
Door Width	43" - 48"
Door Height	84 In.
Door Thickness	1-3/4" to 2-1/4"
Fire Rated	Yes
Product Type	Surface Vertical Rod Exit Devices

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

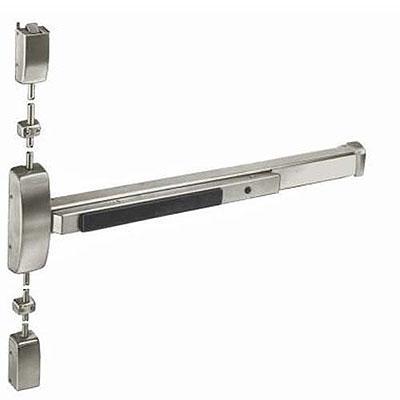

The Sargent 55-12-8713-G-84 Surface Vertical Rod Fire Rated Exit Device Key Locks Or Unlocks Outside Lever, has a Request to Exit Option, an 84" high rod and a 43"-48"rail length.

8700 Series Surface Vertical Rod Exit Devices

Has two-point latching and is adjustable through the center case.

Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projection is adjustable through the center case.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

★★★★★

What customers say about Quality Door & Hardware:

"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."

Can I lock the outside lever?

The outside lever can be locked or unlocked with a key.
