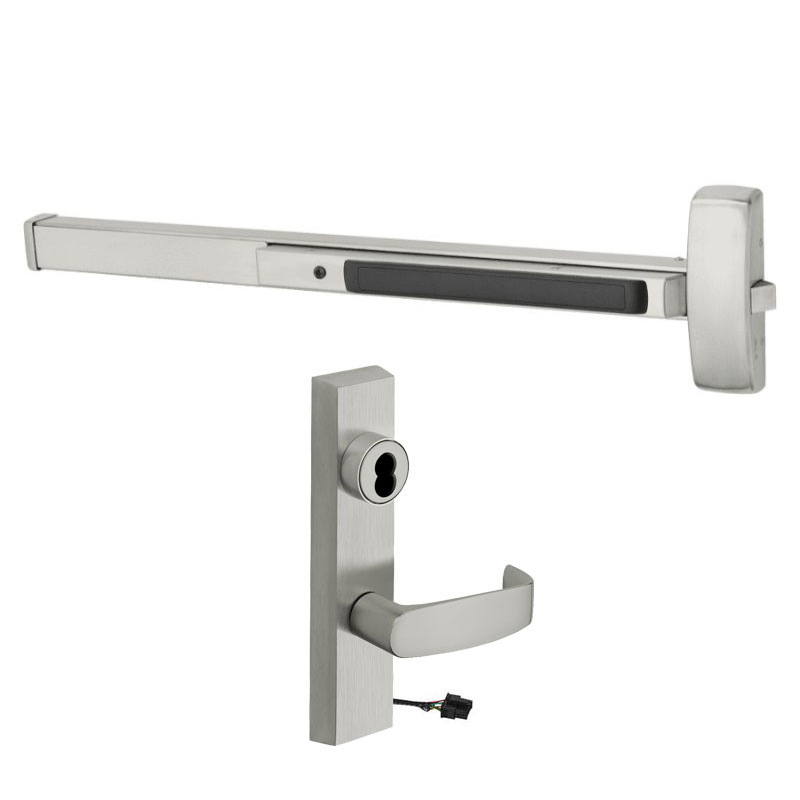

Sargent 55-56-70-8876-J-ETL-24V Rim Exit Device, 24V Fail Secure, L-Lever, Electric Latch Retraction, Request To Exit, 37-42 Inch Door, SFIC Cylinder Less Core, Hex Key Dogging, Grade 1, 32D Stainless Steel

Sargent 55-56-70-8876-J-ETL-24V Rim Exit Device features 24V Fail Secure for a reliable and secure exit, L-Lever design for easy operation, and Electric Latch Retraction to easily open doors. With a Request To Exit feature and compatibility for 37-42 inch doors, this device is Grade 1 certified and comes with an SFIC Cylinder that is easy to install with Hex Key Dogging.

76 Electrified ET Trim - Fail Secure
Power Off, Locks Lever, SFIC Cylinder Less Core

55- Request-to-Exit Option
SARGENT Request-to-Exit Signal Switch option for exit devices provides push rail monitoring for a variety of applications; such as to sound an alarm, initialize a delayed egress system, or de-energize an electromagnetic lock.

56- Electric Latch Retraction Option
SARGENT’s Electric Latch Retraction exit device is the perfect choice for high-traffic egress doors that require access control. This non-handed exit device rail is durable and easy to install. It utilizes a latch retraction motor rather than a solenoid, ensuring quiet operation ideal for locations such as conference rooms, theaters, and libraries. Once retracted, the door functions in a push/pull manner.

The 56-exit device can be dogged for momentary ingress and egress and is commonly used in conjunction with an automatic door operator. The device can be dogged continuously on fire-rated devices that are tied into the building’s fire detection system

8800 Series Rim Exit Devices

The 8800 series is designed for standard-width stile applications on wood and metal doors.

Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" specify thickness and order as a 31- prefix.

Door Widths:

• E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door
• F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door
• J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door
• G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door

Features:

• Single-point rim latching device
• Single door & double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed
