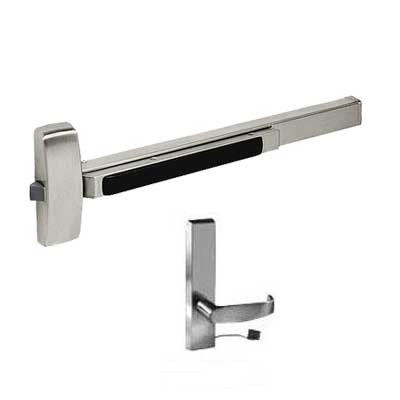

Sargent 55-56-8874-F-ETL-24V-US32D 36" Electrified Fail Secure Rim Exit Device, ETL Trim, 24V, Power Off - Locks Lever, Electric Latch Retraction, Request to Exit, Satin Stainless Steel

  • SKU: 55568874FETL24VUS32DLHR
Sargent 55-56-8874-F-ETL-24V-US32D 36" Electrified Fail Secure Rim Exit Device
Sargent 55-56-8874-F-ETL-24V-US32D 36" Electrified Fail Secure Rim Exit Device
All SARGENT Products

Sargent 55-56-8874-F-ETL-24V-US32D 36" Electrified Fail Secure Rim Exit Device, ETL Trim, 24V, Power Off - Locks Lever, Electric Latch Retraction, Request to Exit, Satin Stainless Steel

  • SKU: 55568874FETL24VUS32DLHR
$3,447.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Handing: LHR - Left Hand Reverse

Sargent 55-56-12-8874-E-ETL-24V is Rim Exit Device, that has Electrified ETL Trim, is 24V, has Fail Secure - Power Off Locks Lever Function, is Non-Keyed, has Electric Latch Retraction, has Request to Exit Function and has a 33"-36" Bar.

Sargent 55-56-12-8874-E-ETL-24V Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Finish, and in Grade 1.

Manufacturer Sargent
SKU 5556-8874F
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
Application Fail Secure
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated No
Burglar Rated No
ADA Compliance Yes




Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 36"
Hand LHR or RHR
Switch Type Request to Exit
Electric Options Electric Latch Retraction
Dogging Options Less Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Non-Keyed Electric Lever
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 33" to 36"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated No
Reversible Yes
Product Type Rim Exit Devices
