Technical Specs
Handing | Non-Handed |
---|---|
Current Draw | 24 VDC regulated/filtered power supply required |
Mode | Fail Secure |
Voltage | 24 VDC |
Current | DC |
U.L. Listed | UL Listed for Class II circuitry |
Product Specs
Manufacturer | Sargent |
SKU | 55-M56AG |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
Application | 80 Series (After 2006) and P Series |

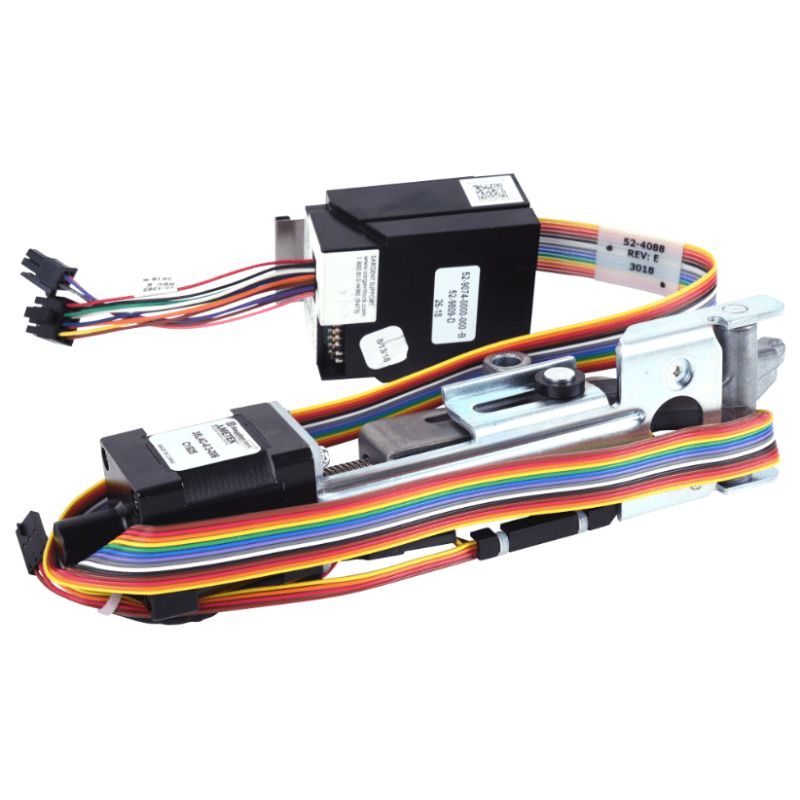

Sargent 55-M56AG Electric Latch Retraction Retrofit Motor Kit, With Signal Switch, G-Rails 43-48" Device, For 80 Series Exit Devices, More Details See Document Center
The Sargent 55-M56AG Electric Latch Retraction Retrofit Motor Kit, equipped with a Signal Switch and G-Rails, is designed for use with 80 Series Exit Devices between 43-48 inches.
Feature Available: 55- Non-Contact Request to Exit switch
- Motor driven electric retraction for smooth precise operation.
- Retrofits standard mechanical rail.
- M56AG - for doors 43-48"
- Retrofit Kits can only be added to 80 Series exit devices manufactured after 2006
& P series exit device. not available on FM8700 Series exit devices. - Amount of rail retraction is automatically controlled by the 56- circuitry; System actively monitors its position and adjusts itself
- Digital retraction timer (0-20 seconds; factory setting is 5 seconds.
- Can be used for continuous and intermittent use.
- Power Requirements: 24VDC regulated/filtered power supply.
- Current draw: .6A during retraction and .25A maintained in dogged hold position.
- Requires 1A at 24VDC regulated/filtered power supply.
M56A Is compatible with:
- 8800 Series Rim Exit Devices
- 8900 Series Mortise Exit Devices
- 8700 Surface Vertical Rod Exit Devices
- 8600 Series Concealed Vertical Rod Exit Devices
- 8500 Narrow Design Rim Exit Devices
- 8300 Narrow Design Mortise Exit Devices
- 8400 Narrow Design Concealed Vertical Rod Exit Devices
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
Which exit devices is this kit compatible with?
This motor kit is designed to retrofit existing Sargent 80 Series (manufactured after 2006) and P Series exit devices.
