Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Surface Vertical Rod |
| Mechanical Function | Storeroom |
| Device Length | 36" |
| Hand | Left Hand Reverse or Right Hand Reverse |
| Electric Options | Electric Latch Retraction |
| Dogging Options | Less Dogging |
| Top Strike | 646 |
| Strike Bottom | 624 |
| Includes Trim | Yes |
| Trim Type | ETL |
| Includes Cylinder(s) | Yes - Conventional Cylinder |
| Keyway |
LA |
| Minimum Stile Size | 3 1/2" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Height | 84" |
| Door Thickness | 1 3/4" to 2 1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Surface Vertical Rod Exit Devices |
Product Specs
| Manufacturer | Sargent |
| SKU | 56-8706F ETL 84 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
| Finish | 630/US32D or 613/US10B |

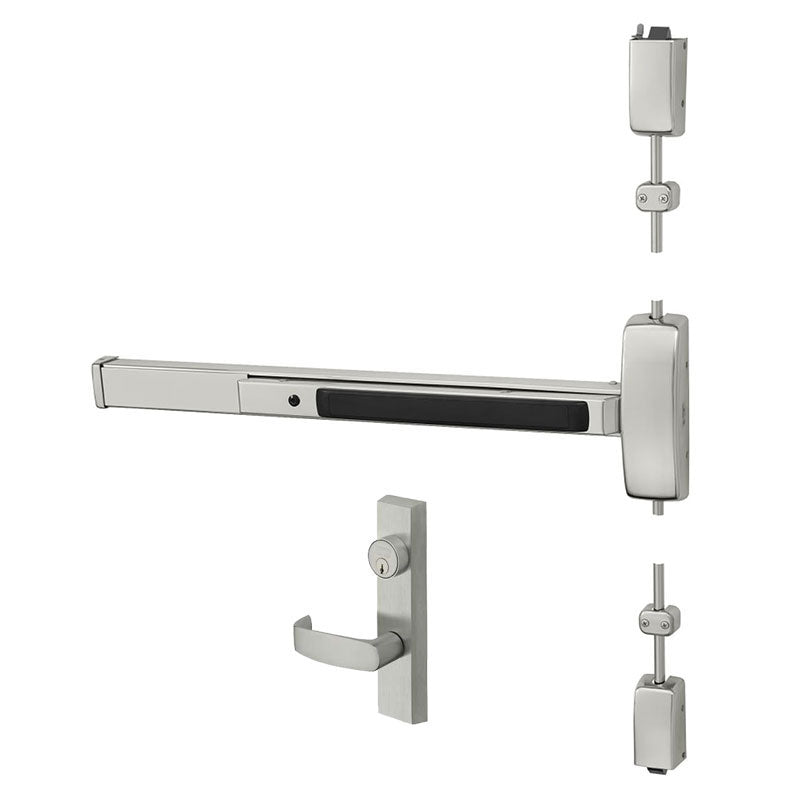

Sargent 56-8706F-ETL-84 Surface Vertical Rod Exit Device, 33"-36" Device, 84" Door Height, Storeroom Function, L Lever with Escutcheon, Electric Latch Retraction, Less Dogging
Sargent's 56-8706F-ETL-84 model features a surface vertical rod exit device with electric latch retraction and ETL trim. This high-quality device is designed for use in storeroom applications and is suitable for doors with a height of 84" and widths ranging from 33" to 36". It also includes an L lever with escutcheon and does not require dogging.
8700 Series Surface Vertical Rod Exit Devices
Has two-point latching and is adjustable through the center case.
Part of Sargent's full line of exit devices that provide the best combination of simplicity, strength, durability, aesthetics, and innovation. The top and bottom latch bolt projection is adjustable through the center case.
- Door Types: Wood or metal 1-3/4"(44mm) Thick Door; Over 1-3/4" to 2-1/4" specify thickness and order as a 31- prefix. 4-1/2" (114mm) minimum stile with trim and 3-1/2" (44mm) minimum stile without trim
- Door Widths: E Rail - 24" to 32" (61cm to 81cm) No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm) No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm) No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm) No cutting required for 48" door
