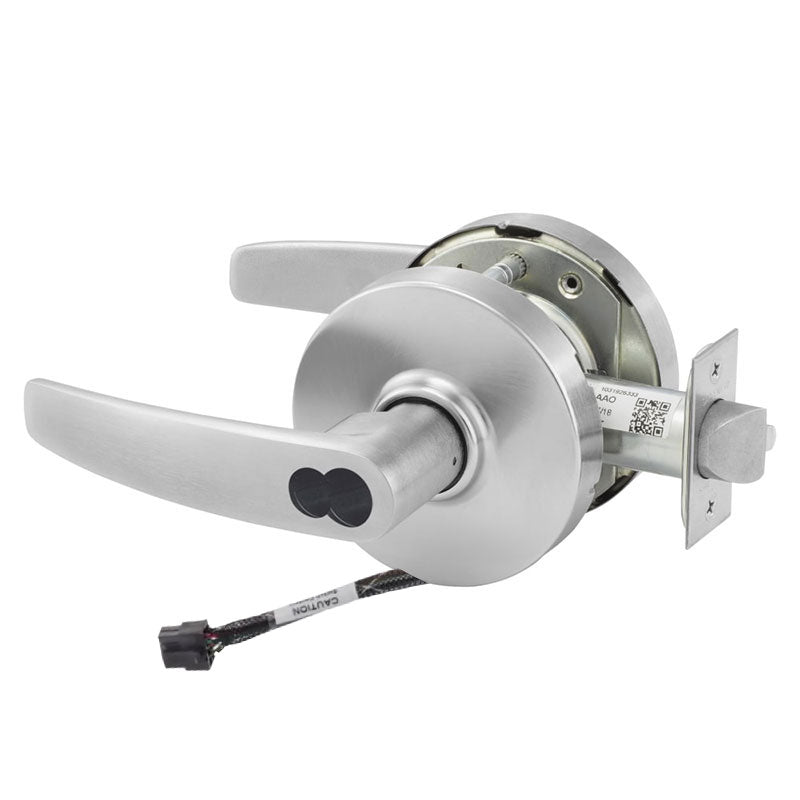

Sargent 60-RX-10XG04-LB-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, B Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LB-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings where security and access control matter. It features an integrated Request to Exit (RX) switch that signals when the interior lever is used, making it ideal for tying into electronic access control and monitoring systems. The lock ships with a 12V power connection, an L rose, and a B lever, along with a 2-3/4" backset and 4-7/8" strike. It accepts a Large Format Interchangeable Core and comes with a furnished disposable plastic core for temporary use during installation, allowing keying to be completed later.

Features

• Grade 1 cylindrical lock engineered for durability in demanding commercial environments.
• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch reports interior lever operation for access control integration.
• 12V electrical connection supports monitored and electronic security systems.
• Large Format Interchangeable Core design allows quick core changes without disassembling the lock.
• Furnished disposable plastic core lets the door function during construction before permanent keying.
• L rose and B lever design offers a clean, contemporary appearance.

Functional Details

The storeroom function (G04) keeps the exterior lever locked and requires a key for entry, while the interior lever is always free for immediate exit. The Request to Exit feature adds a signal each time the inside lever is turned, supporting integration with building security systems.

• Outside lever is always locked. Entrance by key only. Inside lever always free for immediate egress.

Included Components

This lock is supplied with an L rose, B lever, a 2-3/4" backset, a 4-7/8" ANSI strike, and a furnished disposable plastic core for the Large Format Interchangeable Core housing.
