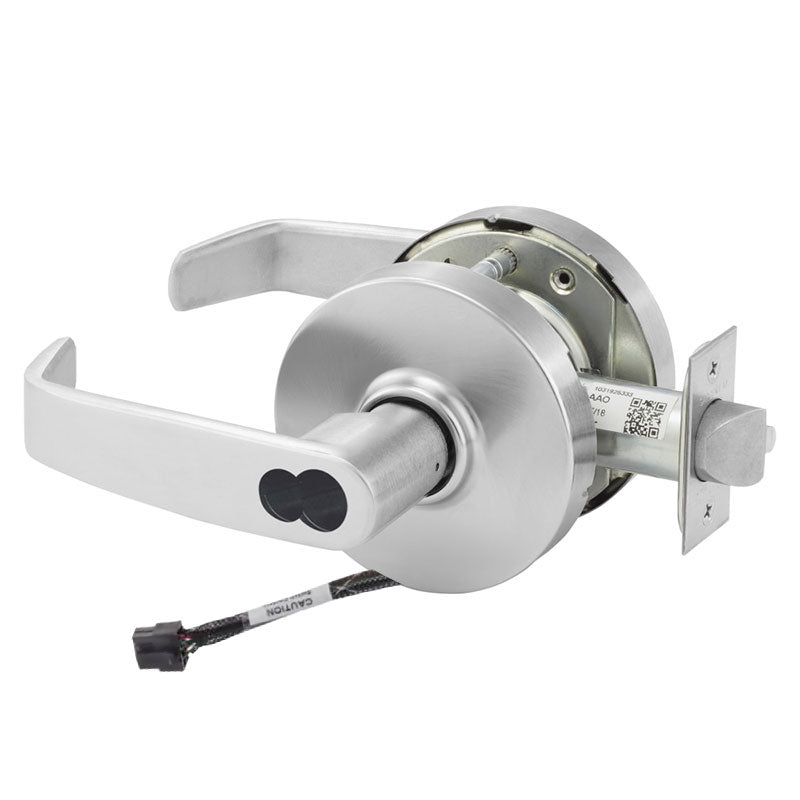

Sargent 60-RX-10XG04-LL-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LL-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings where security and access monitoring matter. It features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for use with access control and building security systems. The lock ships with the L Lever and L Rose design, a large format interchangeable core prep, and a furnished disposable plastic core for temporary keying during construction. With a 2-3/4" backset and a 4-7/8" strike, it installs cleanly on standard commercial doors and delivers dependable, long-term performance in schools, offices, and institutional settings.

Features

• Storeroom function keeps the outside lever locked at all times while the key retracts the latch for entry.
• Built-in Request to Exit switch integrates with access control and security monitoring systems.
• Large format interchangeable core design allows quick rekeying without disassembling the lock.
• Furnished with a disposable plastic core for temporary use during installation and construction.
• L Lever and L Rose styling provides a clean, contemporary appearance.
• Grade 1 rated for the highest level of commercial durability.
• Operates on 12V for compatibility with electrified access systems.

Functional Details

The storeroom (G04) function provides a secure entry point where the outside lever is always locked. Entry requires a key, while the inside lever always allows free egress. The integrated Request to Exit switch reports lever activation on the egress side to connected security or access control hardware.

• Outside lever is always locked.
• Latchbolt operated by key from outside.
• Inside lever is always free for immediate egress.

Included Components

This lock is furnished with a disposable plastic core to enable temporary keying during the construction phase, along with the L Lever, L Rose, and matching strike for a complete standard installation.
