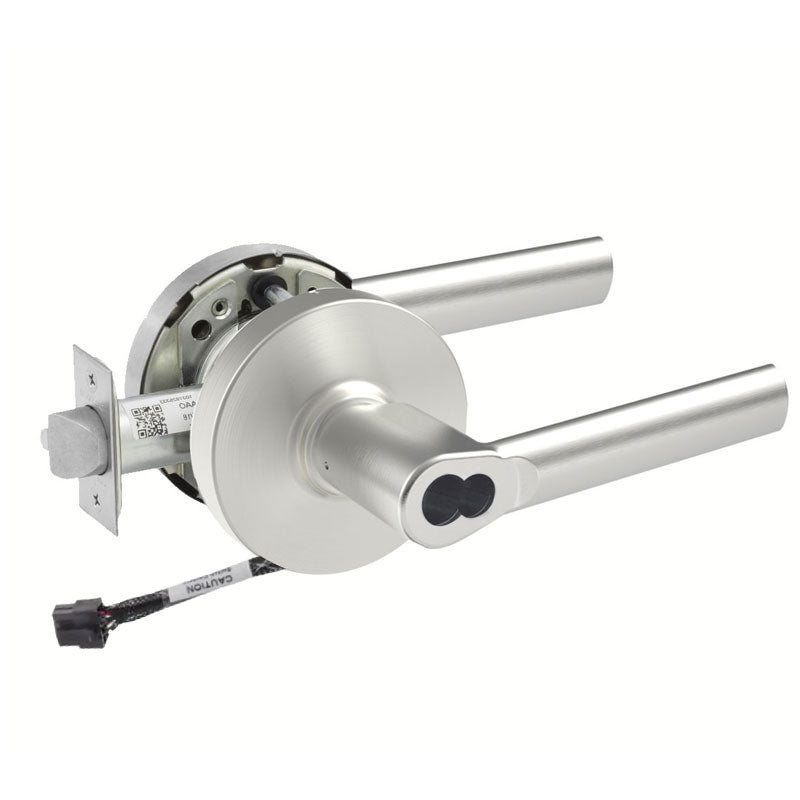

Sargent 60-RX-10XG04-LMB-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LMB-24V is a Grade 1 storeroom function cylindrical lock built for heavy commercial use where security and access control matter. This model features an integrated Request to Exit (RX) switch operating at 24V, allowing it to signal a monitoring system when the inside lever is used. The outside lever stays locked at all times, requiring a key for entry, while the inside lever always allows free egress. It comes with the L rose design and MB lever, a 2-3/4" backset, and a 4-7/8" strike. The large format interchangeable core accepts a furnished disposable plastic core for jobsite convenience.

Features

• Storeroom function keeps the outside lever locked while permitting free egress from the inside at all times.
• Integrated Request to Exit (RX) switch signals when the inside lever is operated.
• 24V electrical rating for compatibility with access control and monitoring systems.
• Large format interchangeable core design furnished with a disposable plastic core.
• L rose and MB lever styling for a clean, durable appearance.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard commercial door prep.
• Grade 1 certification for the highest level of commercial durability.

Functional Details

The G04 storeroom function is designed for spaces that must remain secured at all times. The outside lever is permanently locked and can only be operated by key, while the inside lever always retracts the latch for immediate exit. The added RX switch reports egress activity back to a connected control panel.

• Outside lever is fixed and locked at all times.
• Latchbolt is retracted by key from outside or by lever from inside.
• Inside lever is always free for immediate egress.
