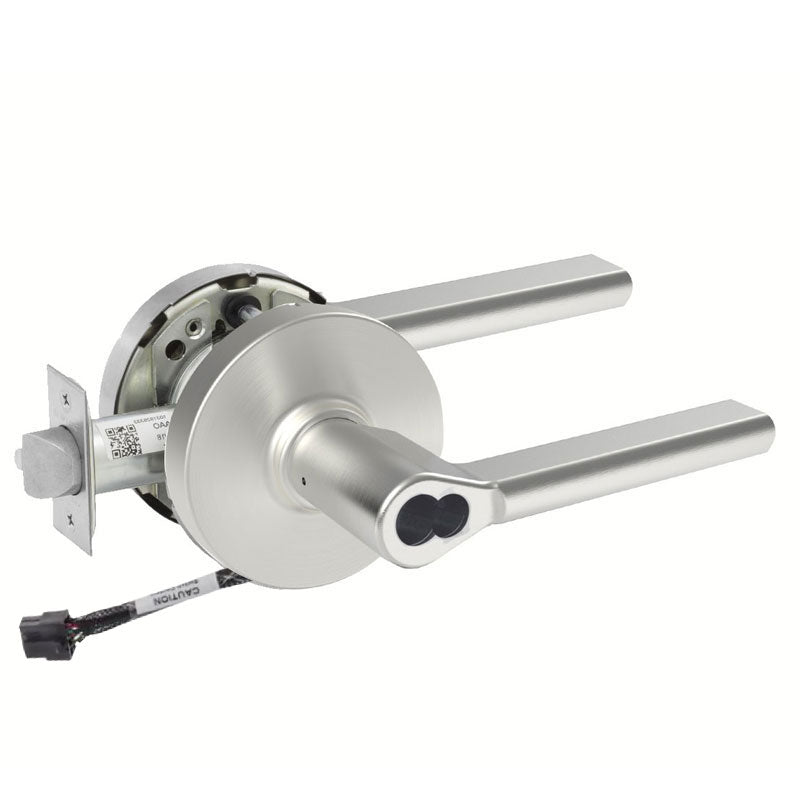

Sargent 60-RX-10XG04-LMD-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LMD-12V is a Grade 1 storeroom function cylindrical lever lock built for high-traffic commercial openings that demand both security and reliable access monitoring. This configuration pairs the durable 10X Line chassis with an integrated Request to Exit (RX) switch, making it ideal for access-controlled doors where egress signaling is required. It features the LMD lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike. Furnished with a large format interchangeable disposable plastic core, it allows for straightforward keying during installation and later replacement with a permanent core. The 12V electrical option supports integration with electronic access systems.

Features

• Storeroom function keeps the outside lever locked at all times while allowing free egress from the inside.
• Built-in Request to Exit (RX) switch signals when the inside lever is operated, supporting access control monitoring.
• LMD lever paired with the L rose delivers a clean, durable trim design.
• Large format interchangeable core allows quick core swaps without disassembling the lock.
• Furnished with a disposable plastic construction core for use during construction and initial keying.
• 12V operation for compatibility with electrified access control systems.
• Grade 1 rating for the highest level of ANSI/BHMA commercial performance.

Functional Details

The storeroom (G04) function provides secure, controlled access. The outside lever remains locked at all times and requires a key to enter, while the inside lever always allows free egress. The RX switch reports each egress event back to the access control system.

• Outside lever is always locked.
• Entrance by key only.
• Inside lever is always unlocked for free egress.
• Latchbolt operated by key outside or lever inside.
