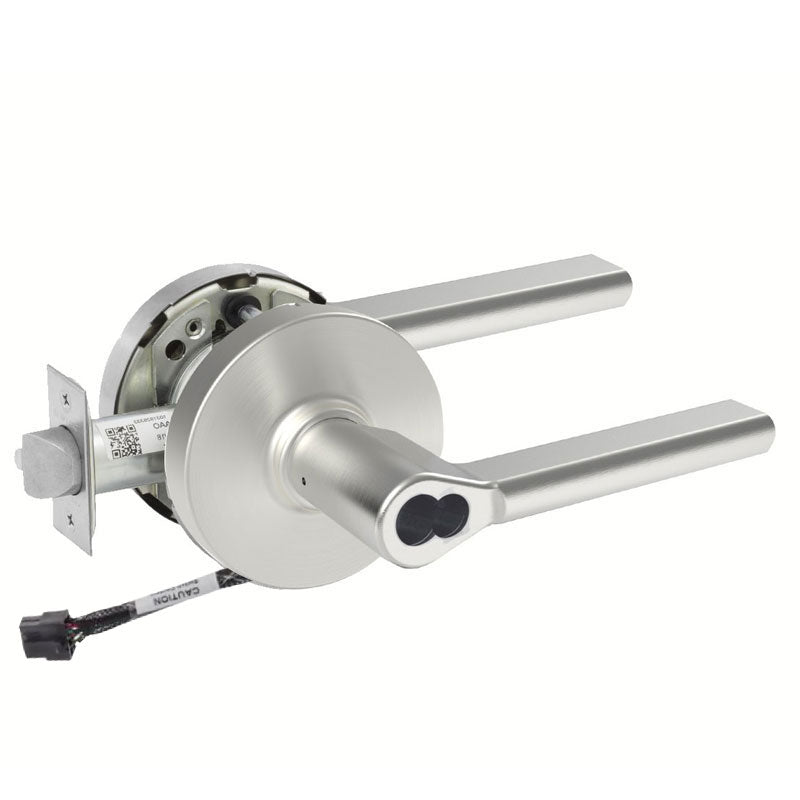

Sargent 60-RX-10XG04-LMD-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LMD-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings where security and reliable access control matter. This model pairs the durable 10X Line chassis with a built-in Request to Exit (RX) switch, allowing it to signal an access control or monitoring system when the interior lever is operated. It features the LMD lever design mounted on the L rose, a 2-3/4" backset, and a 4-7/8" strike. The lock comes equipped with a large format interchangeable disposable plastic core, giving installers a temporary keying solution until a permanent core is fitted. Rated for 24V operation, it delivers dependable performance in institutional and commercial environments.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch communicates lever operation to access control systems.
• Grade 1 certification for the highest level of commercial durability and performance.
• Large format interchangeable core allows fast rekeying without disassembling the lock.
• Furnished with a disposable plastic core for temporary use during construction or setup.
• LMD lever on the L rose provides a clean, contemporary appearance.
• 24V rated for compatibility with electrified access control applications.

Functional Details

The storeroom function ensures the exterior lever remains locked continuously, requiring a key for entry, while the interior lever always permits free egress. The Request to Exit signal is generated when the inside lever is turned, notifying the connected system of an exit event.

• Outside lever is always locked. Latchbolt operated by key from outside or by inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.
