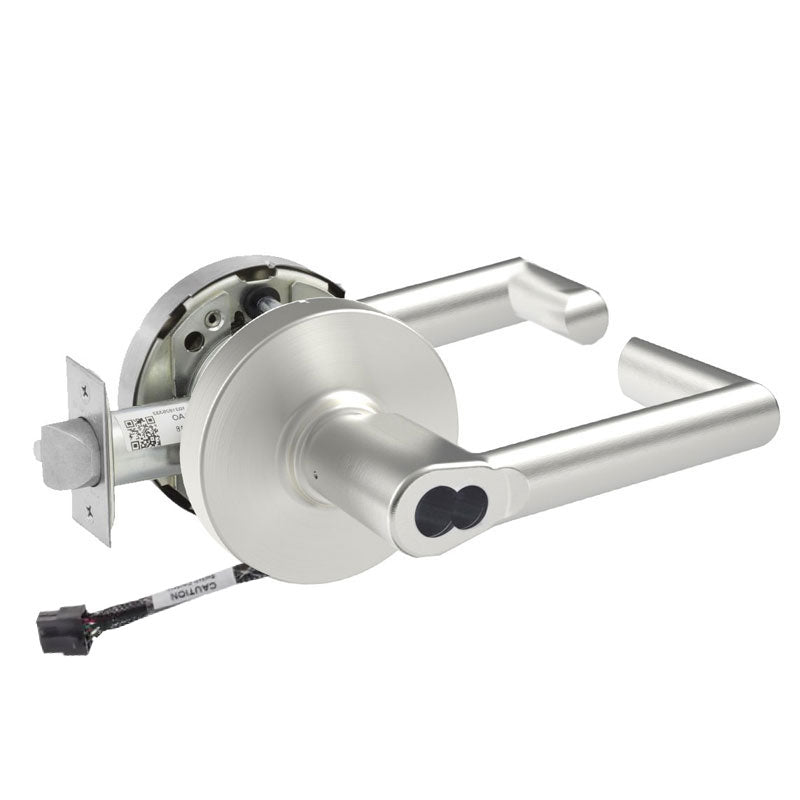

Sargent 60-RX-10XG04-LMW-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG04-LMW-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand both security and monitoring. This lockset features a Request to Exit (RX) switch, allowing it to signal an access control system when the interior lever is operated, making it ideal for secured storerooms, IT closets, and controlled entry points. It comes with the LMW lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike. The lock accepts a Large Format Interchangeable Core (LFIC) and ships with a disposable plastic core for temporary use during construction until permanent keying is installed.

Features

• Storeroom function keeps the outside lever locked at all times, requiring a key for entry while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch communicates with electronic access control and monitoring systems.
• 24V configuration supports low-voltage electrified applications.
• Large Format Interchangeable Core design allows fast rekeying without disassembling the lock.
• Furnished with a disposable plastic core for use before permanent cores are installed.
• MW lever paired with the L rose delivers a durable, ADA-compliant grip.
• Grade 1 ANSI/BHMA rating ensures heavy-duty commercial performance.

Functional Details

The storeroom function (G04) provides a consistently secured opening: the outside lever remains locked and requires key access, while the inside lever retracts the latch freely to permit exit at any time. The added RX switch reports interior lever activation back to a connected access control system.

• Outside lever always locked.
• Latchbolt retracted by key outside or by inside lever.
• Inside lever always free for immediate exit.

Included Components

This lockset ships with the MW lever, L rose trim, the appropriate strike, and a furnished disposable plastic core to protect the keyway during installation and construction phases.
