Sargent 60-RX-10XG04-LP-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

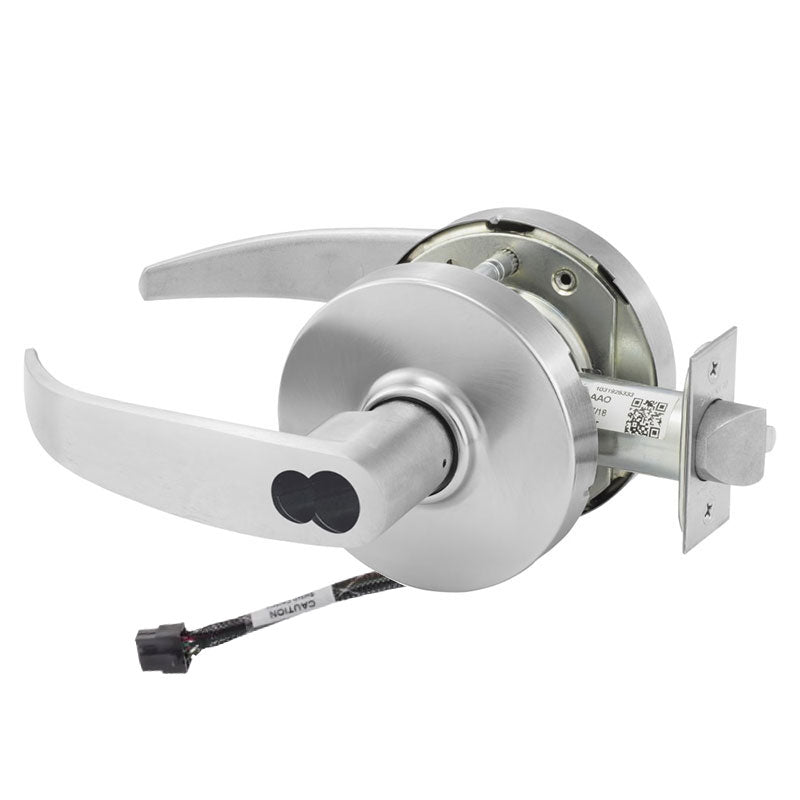

The Sargent 60-RX-10XG04-LP-12V is a Grade 1 cylindrical storeroom lock built for high-traffic commercial applications where security and reliable access control matter. It features a Request to Exit (RX) switch that signals when the lever is operated, making it ideal for integration with access control and monitoring systems. Outfitted with the L rose and P lever, this lockset comes with a 2-3/4" backset and a 4-7/8" ANSI strike. It accepts a Large Format Interchangeable Core and ships with a furnished disposable plastic core, allowing quick installation before final keying. The 12V configuration supports electrified monitoring, delivering dependable performance in demanding environments.

Features

• Grade 1 cylindrical lock rated for heavy commercial use and long-term durability.
• Storeroom function keeps the outside lever always locked while allowing free egress from the inside.
• Built-in Request to Exit (RX) switch for access control and monitoring integration.
• L rose and P lever design for a clean, ADA-compliant appearance.
• Large Format Interchangeable Core with furnished disposable plastic core for fast setup.
• Standard 2-3/4" backset and 4-7/8" ANSI strike for versatile door prep.
• 12V electrified configuration for monitored applications.

Functional Details

The storeroom function keeps the outside lever locked at all times, requiring a key to gain entry, while the inside lever always allows free egress. The integrated Request to Exit switch detects lever movement and sends a signal to connected access control systems for monitoring and door management.

• Outside lever is always fixed/locked; key retracts latch bolt.
• Latch bolt is retracted by key outside or lever inside.
• Inside lever is always free for immediate egress.
• Door is self-locking.

Included Components

This lockset ships complete with the L rose, P lever, matching strike, and a furnished Large Format Interchangeable disposable plastic core to permit installation prior to permanent core keying.
