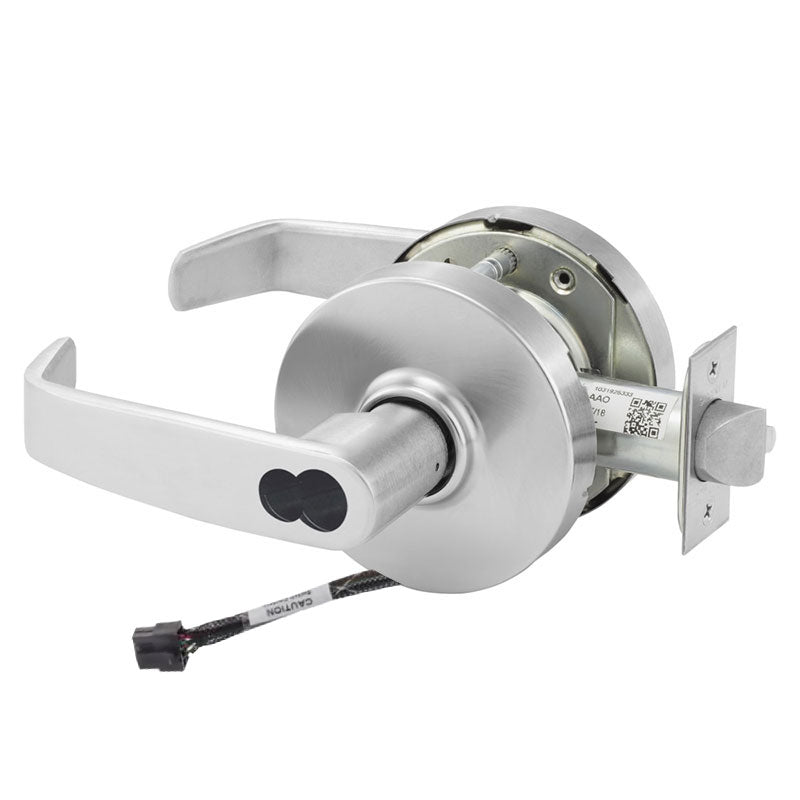

Sargent 60-RX-10XG05-LL-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LL-24V is a Grade 1 cylindrical lever lock built for entrance and office applications where reliable access control and monitoring matter. This model combines the durable 10X Line chassis with an integrated Request to Exit (RX) switch operating at 24V, allowing the lock to signal an access control system when the interior lever is used. It features the L Lever paired with the L Rose, a 2-3/4" backset, and a 4-7/8" strike. Supplied with a large format interchangeable disposable plastic core, it's ideal for construction phases before permanent keying is installed. This lock delivers dependable, heavy-duty performance for commercial doors.

Features

• Entrance or Office function offers versatile everyday access control for commercial openings.
• Built-in Request to Exit (RX) switch communicates lever activation to access control systems.
• Operates on 24V for compatibility with common electrified hardware setups.
• L Lever design with matching L Rose for a clean, modern appearance.
• Large format interchangeable core allows quick, tool-free core changes.
• Furnished with a disposable plastic core for temporary keying during construction.
• Grade 1 rated for the highest level of durability in heavy-use environments.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked by a key or turn/push button, giving staff flexible control over access throughout the day while the inside lever always allows free egress. The Request to Exit feature adds an internal switch that signals the access control system whenever the inside lever is rotated.

• Turn/push-button locking. Pushing and turning the button locks the outside lever, requiring use of a key until the button is manually unlocked.
• Latchbolt operated by lever from either side except when outside lever is locked.
• Rotating inside lever or turning key in the outside lever releases button.
