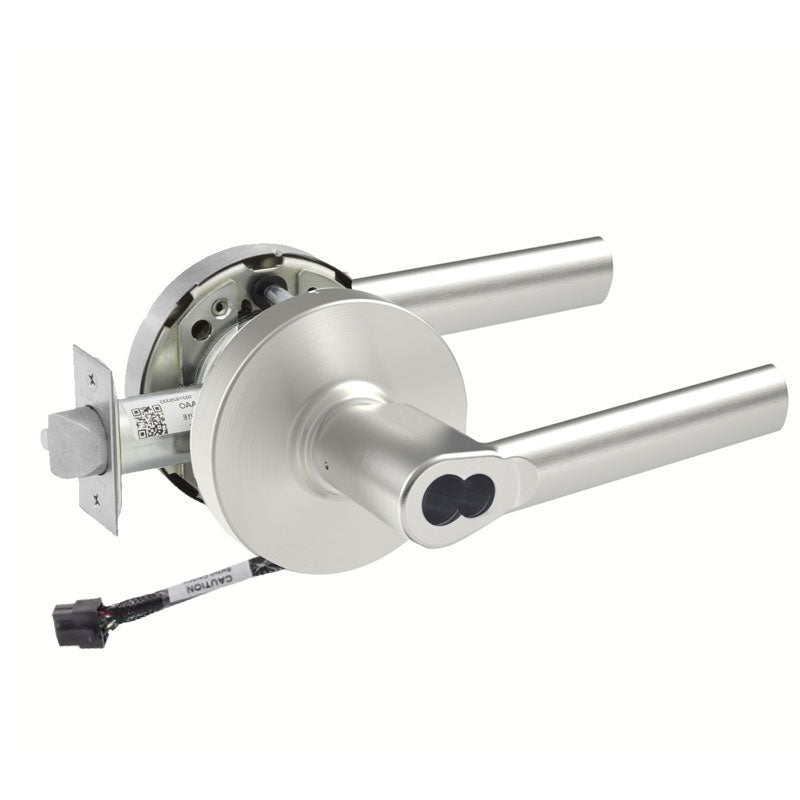

Sargent 60-RX-10XG05-LMB-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LMB-24V is a Grade 1 cylindrical lever lock built for entrance and office openings where controlled access and monitoring matter. This configuration pairs the durable 10X Line chassis with an integrated Request to Exit (RX) switch, allowing the lock to signal an access control system whenever the inside lever is rotated. It features the LMB lever on an L rose, a 2-3/4" backset, and a 4-7/8" strike. Powered at 24V, it accepts a Large Format Interchangeable Core and ships with a disposable plastic core for jobsite protection until permanent keying is installed. It's a dependable choice for commercial and institutional environments.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Integrated Request to Exit (RX) switch monitors inside lever operation for access control.
• Entrance or Office function (G05) provides key and lever control at the outside.
• LMB lever design mounted on the L rose for reliable everyday operation.
• Large Format Interchangeable Core allows fast, tool-free core replacement.
• Supplied with a disposable plastic core to protect the lock during construction.
• 24V operation for compatibility with common access control power supplies.

Functional Details

The Entrance or Office function (G05) allows the outside lever to be locked or unlocked by key or by an inside thumbturn or pushbutton, while the Request to Exit switch reports each time the inside lever is used, giving the access control system a valid egress signal.

• Latchbolt operated by lever from either side except when outside lever is locked by key or turn/push button.
• Outside lever locked and unlocked by key or by turn/push button inside.
• Auxiliary latch deadlocks latchbolt when door is closed.
• When outside lever is locked, latchbolt is retracted by key outside or by rotating inside lever.

Included Components

Each lock ships complete with the L rose trim, LMB lever, strike, and a disposable plastic core for use until a permanent Large Format Interchangeable Core is installed.
