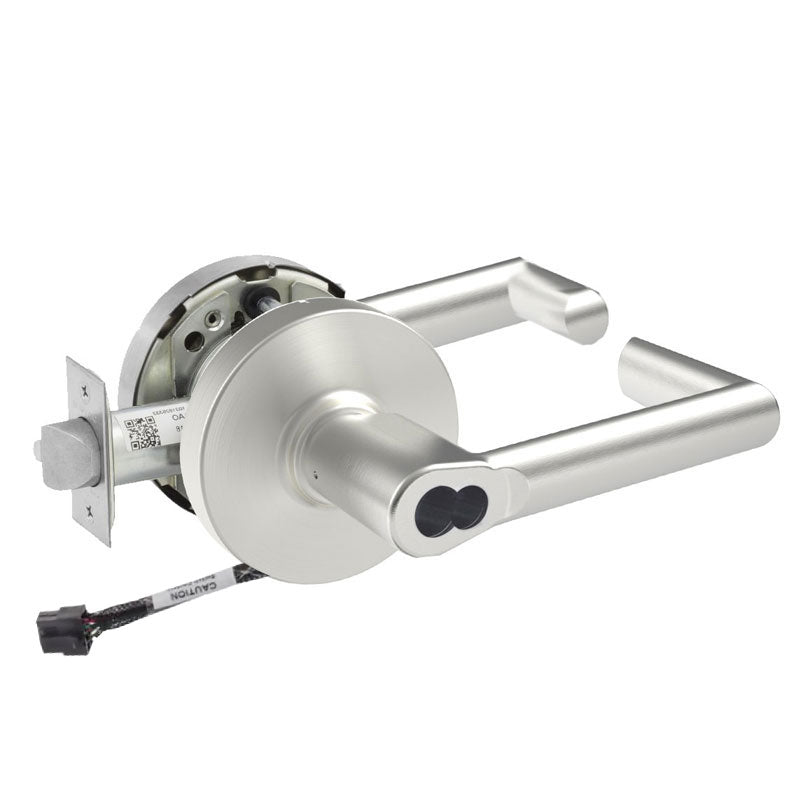

Sargent 60-RX-10XG05-LMW-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LMW-12V is a Grade 1 cylindrical lever lock designed for entrance and office applications where reliable access control and monitoring are required. Built with a Request to Exit (RX) switch, it signals when the inside lever is turned, making it ideal for integration with electronic security and access management systems. This lock features the LMW lever on an L rose, a 2-3/4" backset, and a 4-7/8" strike. It comes prepped with a Large Format Interchangeable Core and includes a furnished disposable plastic core for easy installation and future keying. Operating on 12V, it delivers heavy-duty performance for high-traffic commercial openings.

Features

• Grade 1 cylindrical lever lock rated for demanding commercial use.
• Entrance or office function provides versatile access control for busy openings.
• Built-in Request to Exit (RX) switch monitors inside lever operation for security integration.
• LMW lever mounted on an L rose for a clean, durable design.
• 2-3/4" backset with a 4-7/8" strike for standard commercial door prep.
• Large Format Interchangeable Core allows quick rekeying and core replacement.
• Furnished with a disposable plastic core for streamlined initial installation.
• Operates on 12V for compatibility with electronic access systems.

Functional Details

The Entrance or Office (G05) function combines locking flexibility with exit monitoring. The outside lever can be locked or unlocked, while turning the inside lever always allows free egress and simultaneously activates the Request to Exit signal to notify connected security systems.

• Latchbolt operated by lever from either side except when outside lever is locked by push button.
• Depressing push button in inside lever locks or unlocks outside lever.
• Rotating inside lever or closing door releases push button.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This lock ships with the LMW lever, L rose trim, matching strike, and a furnished disposable plastic core to facilitate installation prior to final keying.
