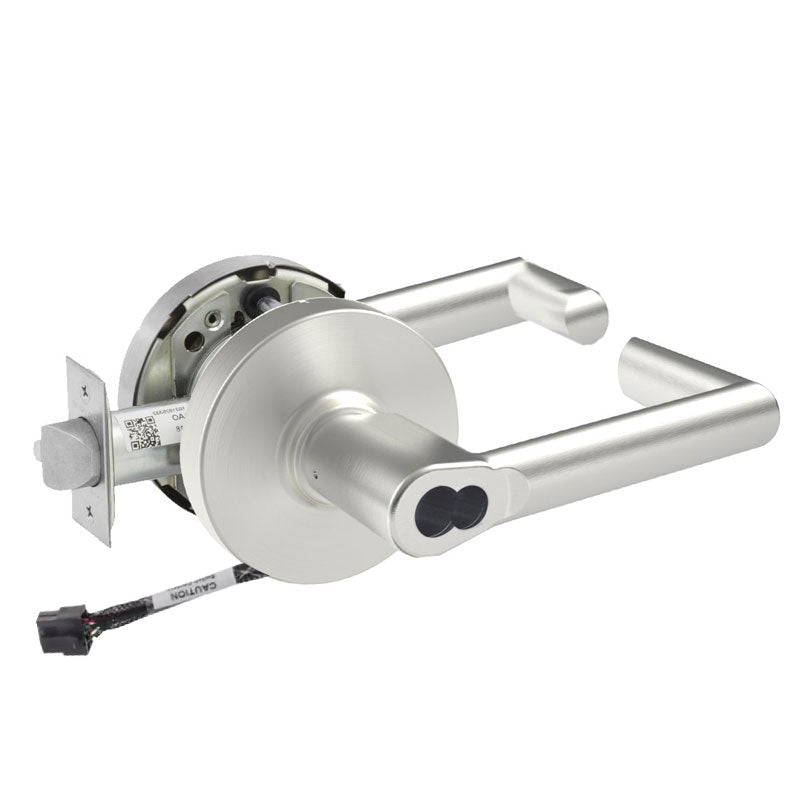

Sargent 60-RX-10XG05-LMW-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LMW-24V is a Grade 1 cylindrical lever lock built for the demands of commercial entrances and offices. Configured for Entrance or Office function with a built-in Request-to-Exit (RX) switch, it monitors egress and integrates cleanly with access control and alarm systems. This model features the LMW lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike. It accepts a Large Format Interchangeable Core and ships with a disposable plastic core for temporary keying during installation. Operating on 24V, it delivers durable, dependable performance in high-traffic openings where security and monitoring are priorities.

Features

• Entrance or Office function provides everyday locking flexibility for commercial doorways.
• Integrated Request-to-Exit (RX) switch signals egress for access control and monitoring.
• Large Format Interchangeable Core design allows fast rekeying without disassembly.
• Furnished with a disposable plastic core for use until a permanent core is installed.
• LMW lever paired with the L rose offers a clean, ergonomic profile.
• Grade 1 rated for heavy-duty commercial applications.
• Operates on 24V for compatibility with electrified hardware systems.

Functional Details

The Entrance/Office function (G05) lets the outside lever be locked or unlocked by key or by a turn/push button, while the inside lever always allows free egress. The RX option reports lever movement for monitoring and control.

• Latchbolt operated by lever from either side except when outside lever is locked by key or push button.
• Auxiliary latch deadlocks latchbolt when door is closed.
• Turn/push button locking; rotating inside lever, closing door or key outside releases button.
• Inside lever always free for immediate egress.

Included Components

The lock ships with the LMW lever trim, L rose, 4-7/8" strike, a disposable plastic core for temporary keying, and the necessary mounting hardware for standard installation.
