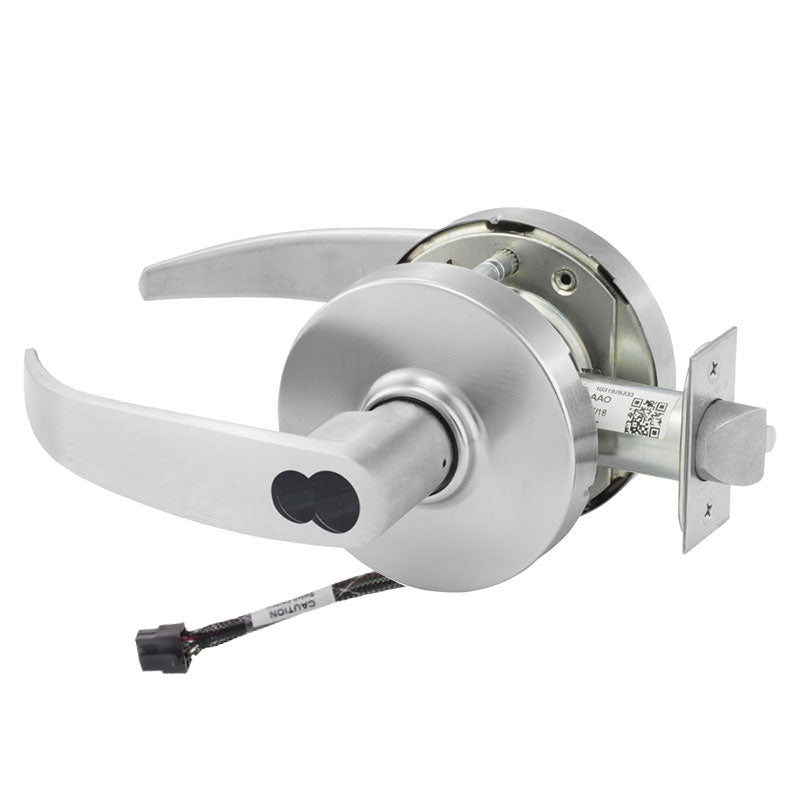

Sargent 60-RX-10XG05-LP-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG05-LP-12V is a Grade 1 cylindrical lever lock built for entrance and office openings that require reliable access control paired with monitoring. This 10X Line lockset features the LP lever with L rose design and includes an integrated Request to Exit (RX) switch, allowing the lock to signal when the inside lever is operated. Operating on 12V, it accepts a Large Format Interchangeable Core and ships with a disposable plastic construction core for use during installation. With a standard 2-3/4" backset and 4-7/8" strike, this lock delivers dependable heavy-duty performance in commercial environments where durability and function matter.

Features

• Entrance or Office function provides flexible locking control for commercial doors.
• Integrated Request to Exit (RX) switch monitors inside lever operation for access control integration.
• LP lever design paired with the L rose for a clean, durable finish.
• Large Format Interchangeable Core (LFIC) allows fast rekeying and core changes.
• Furnished with a disposable plastic construction core for temporary use during installation.
• Operates on 12V for compatibility with electrified access systems.
• Grade 1 rated for high-traffic, heavy-duty applications.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked by a key or an inside pushbutton, while the inside lever always remains free for immediate egress. The Request to Exit feature adds an internal switch that activates when the inside lever is turned, sending a signal to the access control system.

• Latchbolt operated by lever from either side except when outside is locked by key or turn/push button.
• Outside lever locked and unlocked by key.
• Auxiliary latch deadlocks latchbolt when door is closed.
• Inside lever always free for immediate egress.
