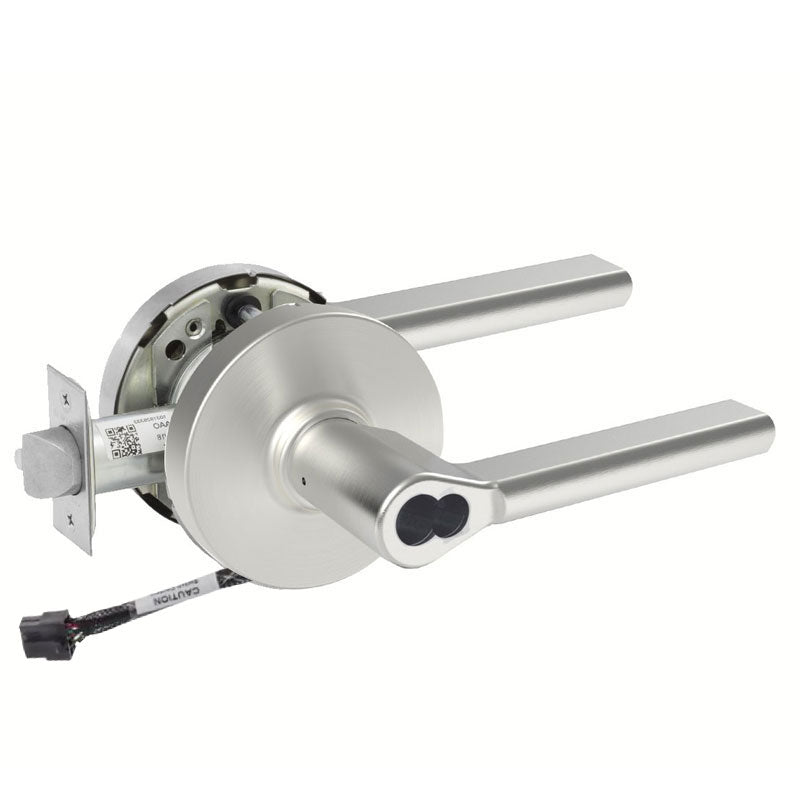

Sargent 60-RX-10XG37-LMD-24V Classroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG37-LMD-24V is a Grade 1 classroom function cylindrical lock built for high-traffic institutional and educational openings where reliable security and access control matter. It pairs the durable 10X Line chassis with a Request to Exit (RX) switch that signals when the lever is operated, making it ideal for integration with access control and monitoring systems. This model features the L rose and MD lever design, a 2-3/4" backset, and a 4-7/8" ANSI strike. It comes with a large format interchangeable core prep and a furnished disposable plastic core, allowing quick keying during installation. The 24V configuration supports electrified monitoring applications.

Features

• Classroom function allows the outside lever to be locked or unlocked by key, while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch provides signaling for access control and monitoring systems.
• Grade 1 rated for heavy-duty, high-traffic commercial and institutional use.
• L rose with MD lever design for a clean, durable appearance.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.
• Large format interchangeable core with a furnished disposable plastic core for jobsite keying.
• 24V electrified configuration for monitored applications.

Functional Details

The classroom function (F05) secures the opening from the outside using a key, while keeping the inside lever operable at all times for safe egress. The Request to Exit switch registers lever movement to communicate with connected security systems.

• Outside lever locked and unlocked by key.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
