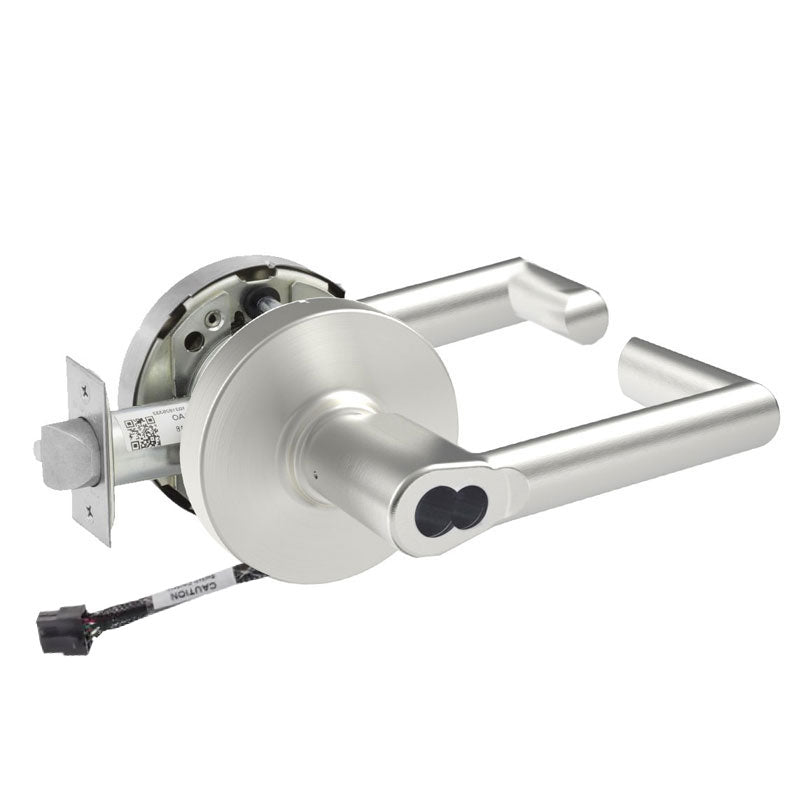

Sargent 60-RX-10XG37-LMW-12V Classroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG37-LMW-12V is a Grade 1 classroom function cylindrical lock built for the demands of schools, healthcare facilities, and other high-traffic commercial buildings. It combines Sargent's rugged 10X Line construction with an integrated Request to Exit (RX) switch that signals when the inside lever is operated, making it a practical choice for access control and monitored openings. This unit features the LMW lever on an L rose, a large format interchangeable core prepped with a furnished disposable plastic core, and 12-volt electrical operation. With a 2-3/4" backset and 4-7/8" strike, it installs cleanly on standard commercial doors and delivers dependable everyday performance.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch supports access control and door monitoring.
• MW lever mounted on the L rose for a clean, ergonomic feel.
• Large format interchangeable core design furnished with a disposable plastic core for easy final keying.
• Operates on 12-volt power for electrified access applications.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door prep.

Functional Details

The classroom function lets authorized staff control access from the corridor side using a key, while the inside lever always retracts the latch to permit immediate exit. The built-in Request to Exit switch electronically signals the access control system whenever the inside lever is turned.

• Latchbolt operated by lever from either side except when outside is locked by key.
• Outside lever locked and unlocked by key.
• Inside lever always free for immediate egress.
• Request to Exit (RX) switch signals egress from the secure side.

Included Components

This lockset ships as a complete assembly including the LMW lever trim, L rose, latch, 4-7/8" strike, and a furnished disposable plastic core to hold the core prep until permanent cylinders are installed.
