Description

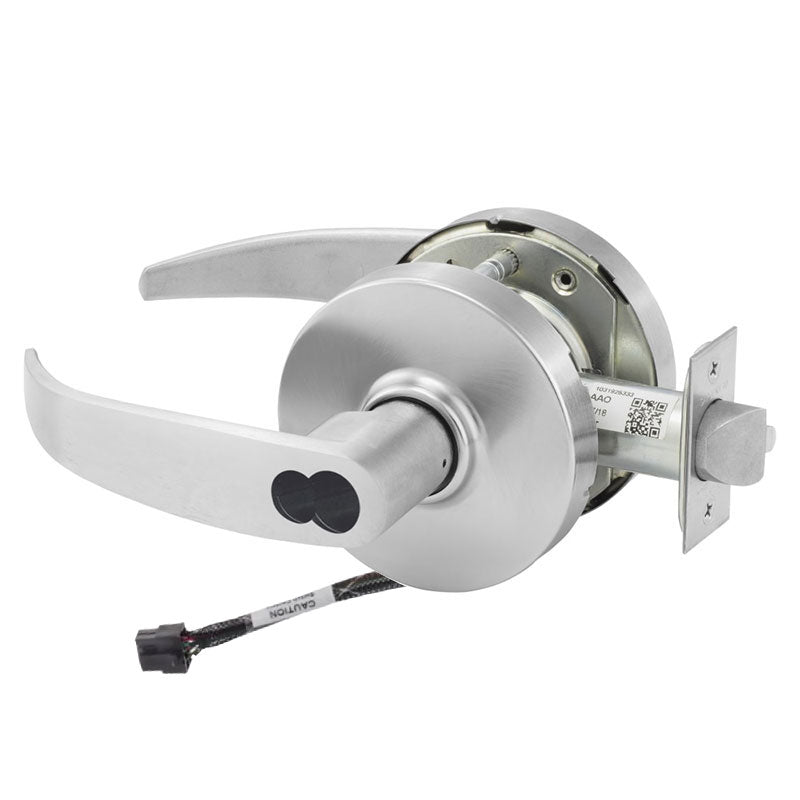

Sargent 60-RX-10XG37-LP-12V Classroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1
The Sargent 60-RX-10XG37-LP-12V is a Grade 1 classroom function cylindrical lock built for high-traffic commercial and institutional openings. It features Request to Exit (RX) monitoring, allowing the lock to signal an access control system when the inside lever is operated, making it ideal for schools, offices, and secure facilities. Configured with the L rose and P lever design, it accepts a Large Format Interchangeable Core and ships with a disposable plastic core for temporary keying during construction. With a 2-3/4" backset and 4-7/8" strike, this 12V-ready lock combines durable ANSI-rated performance with the electronic integration modern access control demands.
Features
- Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always permits free egress.
- Request to Exit (RX) switch signals access control systems when the interior lever is turned.
- Large Format Interchangeable Core design enables fast rekeying without disassembling the lock.
- Furnished with a disposable plastic core for jobsite convenience prior to permanent cylinder installation.
- 12V operation supports integration with electrified access control hardware.
- Grade 1 rating delivers dependable performance in demanding commercial environments.
- P lever and L rose trim provide a clean, ADA-compliant appearance.
Functional Details
The classroom function keeps egress unrestricted from the inside at all times while allowing the outside lever to be secured or released with a key. The integrated Request to Exit switch reports lever activation to a connected system for monitoring and control.
- Outside lever locked or unlocked by key.
- Inside lever always free for immediate egress.
- Auxiliary latch deadlocks the latchbolt when the door is closed.
Included Components
This lock is furnished with a disposable plastic core, the P lever trim, and the L rose assembly for immediate installation on standard door preparations.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 60-RX-10XG37-LP-12V |
| Grade | ANSI/BHMA Grade 1 |
| Function | Classroom, Request to Exit |
| Core Type | Large Format Interchangeable, Disposable Plastic Core |
| Lever / Rose | P Lever, L Rose |
| Origin | Made in USA |
| Unit of Measure | Each |
| ANSI Number | F110 / A156.2 Series 4000 |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Backset | 2-3/4" |
|---|---|
| Strike | 4-7/8" |
| Voltage | 12V |
| Latchbolt Throw | 1/2" |
| Door Thickness Range | 1-3/8" to 2" |
| Chassis Type | Cylindrical |
| Bore Hole Diameter | 2-1/8" |
| Handing | Non-handed |
| Switch Type | Request to Exit (RX) |
| Rose Diameter | 3-1/2" |
| Lever Return | Standard return |
