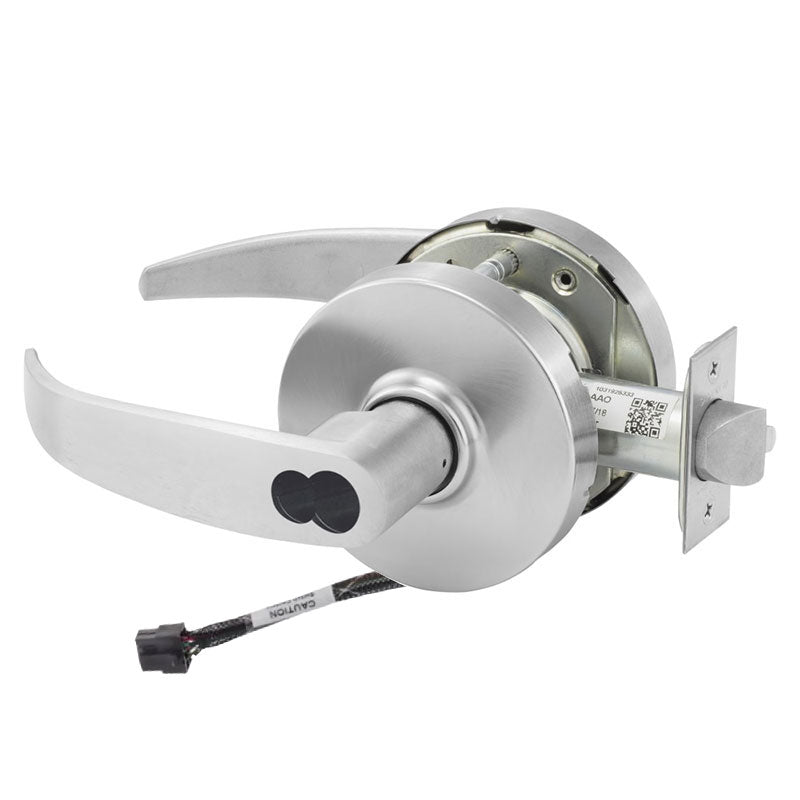

Sargent 60-RX-10XG37-LP-24V Classroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Large Format Interchangeable, Furnished Disposable Plastic Core, Grade 1

The Sargent 60-RX-10XG37-LP-24V is a Grade 1 classroom function cylindrical lock built for the demands of schools, healthcare facilities, and other high-traffic commercial environments. It features a Request to Exit (RX) switch that signals access control systems when the lever is operated, along with a 24V electrified configuration for integration with electronic security. The lock is fitted with the L rose and P lever design, a 2-3/4" backset, and a 4-7/8" strike. It comes with a large format interchangeable core housing and a furnished disposable plastic core, making it easy to keep secured until permanent keying is installed. Durable construction and ANSI compliance make it a reliable long-term choice.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial applications.
• Classroom function allows the outside lever to be locked or unlocked by key while the inside lever always allows free egress.
• Request to Exit (RX) switch monitors lever operation for access control integration.
• 24V electrified operation for compatibility with electronic security systems.
• Large format interchangeable core accepts a furnished disposable plastic core for temporary use.
• L rose and P lever styling with a 2-3/4" backset and 4-7/8" strike.

Functional Details

The classroom function (G37) allows an instructor to secure the room from the corridor side using a key, while occupants inside can always exit freely. The integrated Request to Exit switch reports lever activation back to the access control system, supporting monitored egress and security auditing.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Outside lever locked and unlocked by key.
• When locked, latchbolt operated by key outside or by rotating inside lever.
• Inside lever always free for immediate egress.
