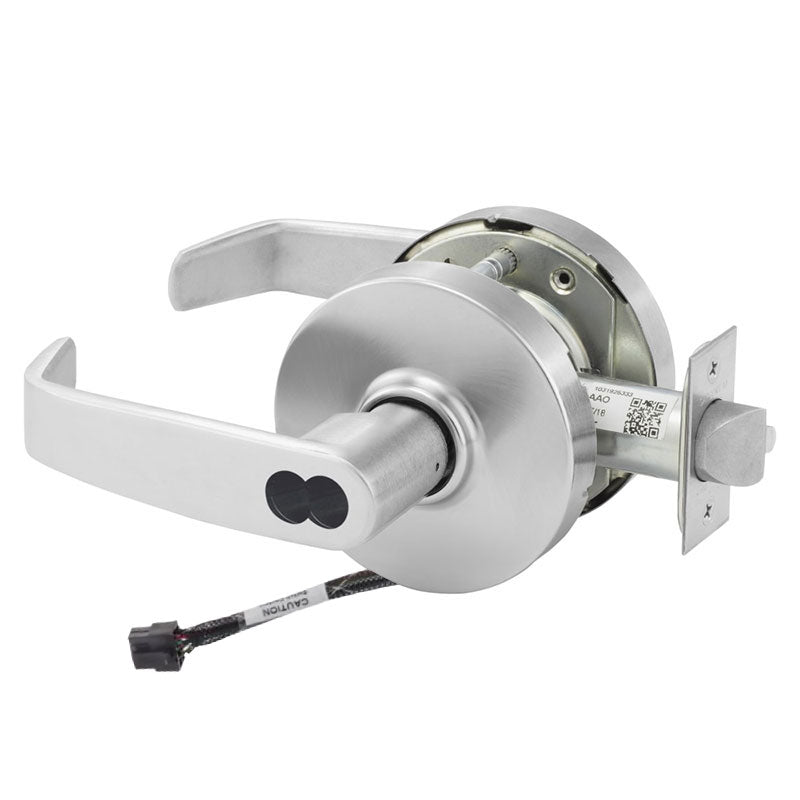

Sargent 70-RX-10XG04-LL-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LL-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand durability and controlled access. It features an integrated Request to Exit (RX) switch that signals when the lever is operated, making it ideal for access control and electronic monitoring systems. Designed with the LL trim, this lock pairs an L lever with an L rose for a clean, contemporary look. It ships less core in a small format interchangeable prep, allowing you to install your preferred SFIC cylinder for keying flexibility. With a 2-3/4" backset and 4-7/8" strike, it's a reliable choice for institutional and commercial buildings.

Features

• Storeroom function keeps the outside lever locked at all times, retracting the latch by key only.
• Built-in Request to Exit (RX) switch reports lever operation for access control integration.
• 24V operation for compatibility with electrified hardware systems.
• L lever and L rose trim (LL) offer a modern, comfortable grip.
• Small format interchangeable core prep, furnished less core for keying flexibility.
• 2-3/4" backset with a 4-7/8" strike for standard commercial door prep.
• Grade 1 certified for the highest level of commercial performance.

Functional Details

The storeroom function provides secure, one-way controlled access. The outside lever is always locked and requires a key to retract the latch, while the inside lever always allows free egress. The inside lever never activates the outside lever.

• Outside lever is always fixed. Entrance by key only.
• Latch bolt is retracted by key outside or lever inside.
• Inside lever always free for immediate egress.
• Auxiliary latch deadlocks the latch bolt when the door is closed.
