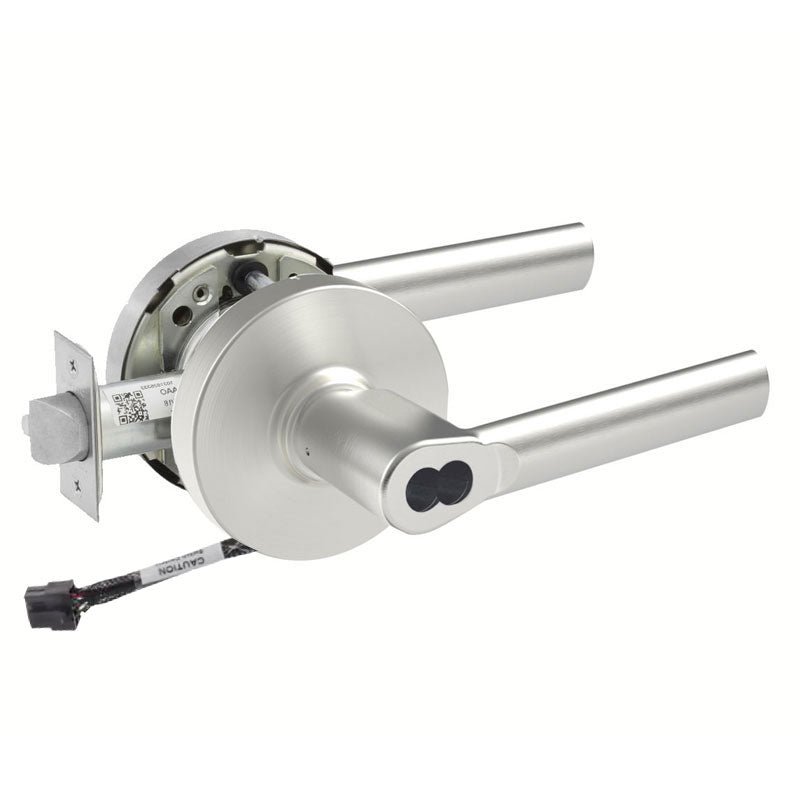

Sargent 70-RX-10XG04-LMB-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMB-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand both security and monitoring capability. Featuring an integrated Request to Exit (RX) switch and 12V operation, this lock signals access control systems when the inside lever is turned, making it ideal for secured storerooms, IT rooms, and utility spaces. It comes with the LMB lever on the L rose and is prepped for a small format interchangeable core (furnished less core), giving facilities the flexibility to key it to an existing system. With a 2-3/4" backset and 4-7/8" ANSI strike, it fits standard commercial door preparations.

Features

• Storeroom function keeps the outside lever locked at all times, with entry by key only.
• Built-in Request to Exit (RX) switch communicates egress activity to access control systems.
• 12V operation for compatibility with electrified access control setups.
• Small format interchangeable core prep, furnished less core for keying flexibility.
• MB lever design paired with the L rose for a clean, durable appearance.
• Grade 1 rated construction for heavy commercial use.
• 2-3/4" backset and 4-7/8" ANSI strike for standard door fit.

Functional Details

The storeroom function locks the outside lever at all times so entry is only possible using a key, while the inside lever always allows free egress. The integrated Request to Exit switch monitors the inside lever, sending a signal to the access control system whenever someone exits.

• Outside lever is fixed. Entrance by key only. Inside lever always free for immediate egress.
