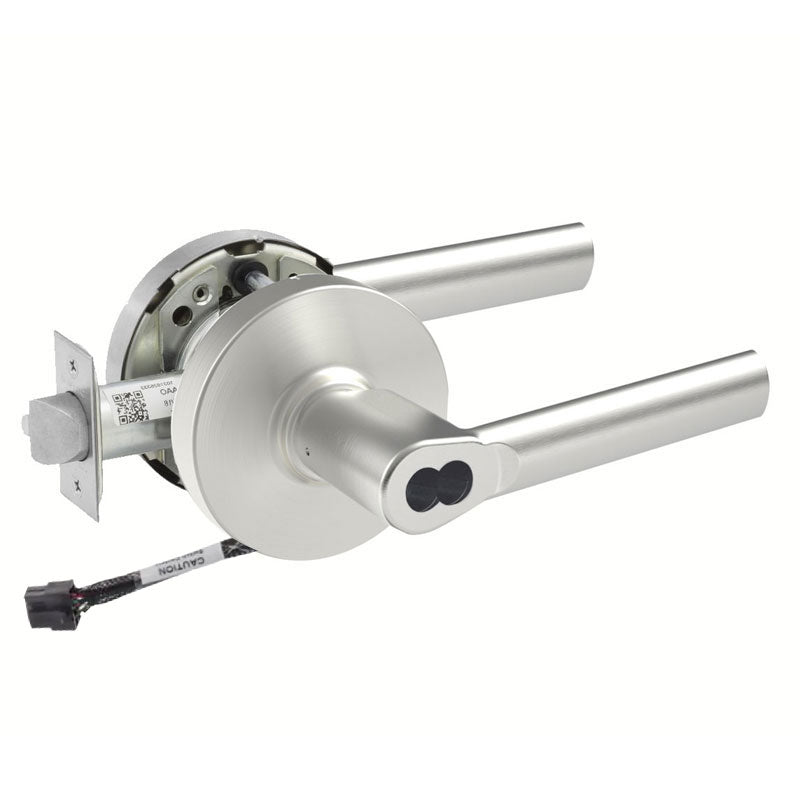

Sargent 70-RX-10XG04-LMB-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMB-24V is a Grade 1 cylindrical storeroom function lock built for demanding commercial openings that require electronic monitoring. This model integrates a Request to Exit (RX) switch, allowing the lock to signal an access control or alarm system when the lever is operated from the inside. It ships with the LMB lever on the L rose and is prepped for a small format interchangeable core, furnished less core so you can key it to your facility's system. Operating at 24V, it delivers reliable performance in storerooms, utility rooms, and secured access points where consistent security and door status feedback are essential.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Built-in Request to Exit (RX) switch provides door status signaling to compatible access control systems.
• Small format interchangeable core prep accepts SFIC cylinders and is furnished less core for field keying.
• LMB lever paired with the L rose offers durable, ADA-compliant operation.
• Grade 1 certified for heavy-duty commercial use.
• Operates on 24V for integration with electrified hardware systems.

Functional Details

The storeroom (G04) function secures the opening by keeping the outside lever permanently locked, requiring a key for entry, while the inside lever always retracts the latch for free egress. The RX switch reports when the inside lever is operated, supporting monitoring and audit needs.

• Outside lever is always fixed. Entrance by key only. Inside lever is always free for immediate egress. Latchbolt is retracted by key from outside or by inside lever.
