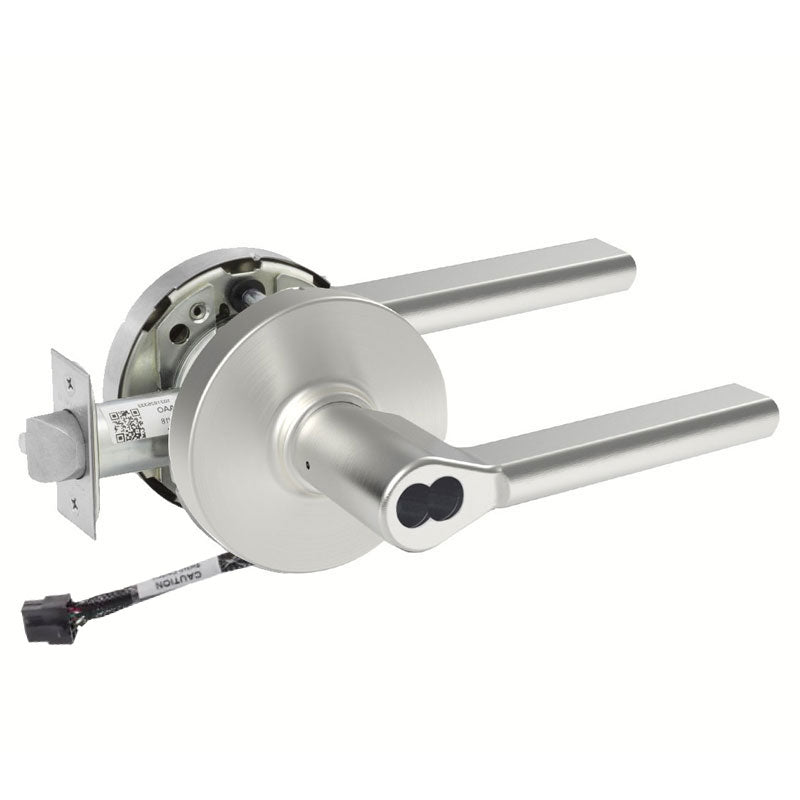

Sargent 70-RX-10XG04-LMD-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMD-12V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand durability and controlled access. It features an integrated Request to Exit (RX) switch that signals when the lever is turned, making it ideal for access control and monitored door applications. This model uses the LMD lever paired with the L rose, and is furnished less core to accept a small format interchangeable core (SFIC), giving facilities the flexibility to key it to an existing system. With a 2-3/4" backset and 4-7/8" strike, it fits standard commercial door prep. The 12V operation supports electrified access control integration.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch monitors lever operation for access control systems.
• 12V electrified operation for compatibility with electronic access control.
• Small format interchangeable core design, furnished less core for keying flexibility.
• LMD lever with L rose provides a clean, ADA-compliant design.
• Grade 1 rated for heavy-duty commercial performance.
• 2-3/4" backset with a 4-7/8" strike for standard door preparation.

Functional Details

The storeroom (G04) function secures the opening by keeping the outside lever permanently locked, requiring a key for entry, while the inside lever remains free for immediate egress. The RX switch reports lever activity back to the access control system.

• Outside lever is always locked.
• Key in outside lever retracts latchbolt.
• Inside lever is always free for immediate egress.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This lockset ships less core, allowing the installer to add a compatible small format interchangeable core keyed to the facility's system. The RX request-to-exit switch is factory installed within the chassis.
