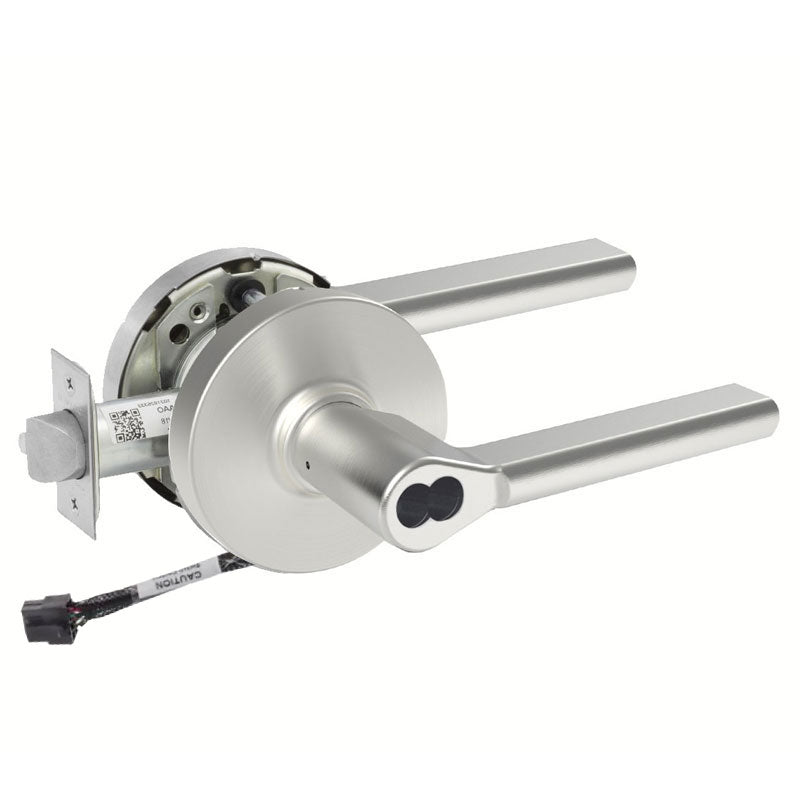

Sargent 70-RX-10XG04-LMD-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMD-24V is a Grade 1 storeroom function cylindrical lock built for high-traffic commercial openings that demand both security and monitoring. Featuring an integrated Request to Exit (RX) switch and 24V operation, this lock lets facility managers track door status and integrate the opening into access control or alarm systems. It comes with the LMD lever on an L rose and accepts a small format interchangeable core, shipping less core so you can key it to your existing system. With a standard 2-3/4" backset and 4-7/8" strike, it installs cleanly on standard door prep, making it a dependable choice for storerooms, utility rooms, and secured areas.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Storeroom (G04) function keeps the outside lever locked at all times with key access.
• Built-in Request to Exit (RX) switch signals when the inside lever is operated.
• 24V operation for integration with electronic access control and monitoring systems.
• Accepts a small format interchangeable core and ships less core for flexible keying.
• LMD lever design paired with the L rose for a clean, ergonomic look.
• Standard 2-3/4" backset and 4-7/8" strike for easy installation.

Functional Details

The G04 storeroom function keeps the outside lever fixed and locked, requiring a key for entry, while the inside lever always allows free egress. The integrated RX switch reports egress activity back to the access control or monitoring system.

• Outside lever is fixed. Key retracts the latchbolt. Rotating inside lever retracts latchbolt for egress at all times.

Included Components

Lock body with LMD lever on L rose, Request to Exit switch, strike, and mounting hardware. Furnished less core to accommodate a small format interchangeable core keyed to your system.
