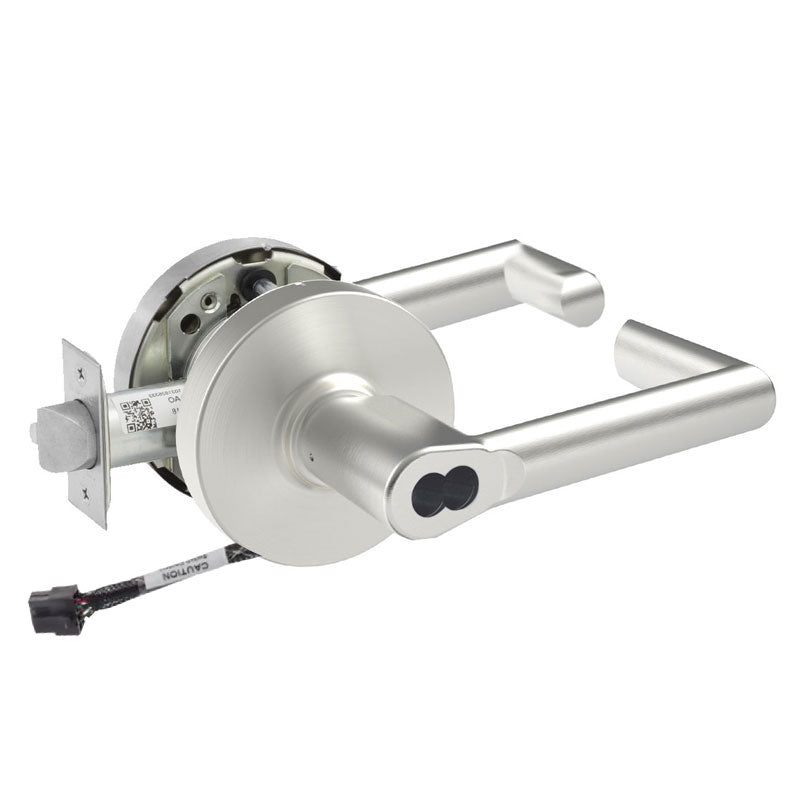

Sargent 70-RX-10XG04-LMW-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMW-12V is a Grade 1 storeroom function cylindrical lock engineered for high-traffic commercial openings that demand reliable security and access control. Part of Sargent's 10X Line, this lockset features the LMW lever on an L rose and integrates a Request to Exit (RX) switch that signals when the inside lever is operated, making it ideal for electronic access control and monitored openings. Operating on 12V, it accepts a small format interchangeable core and is furnished less core, allowing keying to match your existing system. With a 2-3/4" backset and 4-7/8" strike, it delivers dependable performance for storerooms, utility rooms, and secured entrances.

Features

• Grade 1 cylindrical lever lock built for durability in demanding commercial applications.
• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch monitors inside lever operation for access control integration.
• LMW lever design paired with the L rose for a clean, ADA-compliant appearance.
• Small format interchangeable core compatibility, furnished less core for flexible keying.
• Operates on 12V for use with electrified access control systems.
• 2-3/4" backset with a 4-7/8" strike for standard commercial door prep.

Functional Details

The storeroom function (G04) provides secure control at the outside lever while maintaining safe, unimpeded egress from the inside. The RX switch reports lever activity to connected security or monitoring systems.

• Outside lever is always fixed. Latchbolt operated by key outside and inside lever.
• Inside lever always active for immediate egress.
• Auxiliary latch deadlocks latchbolt when door is closed.
