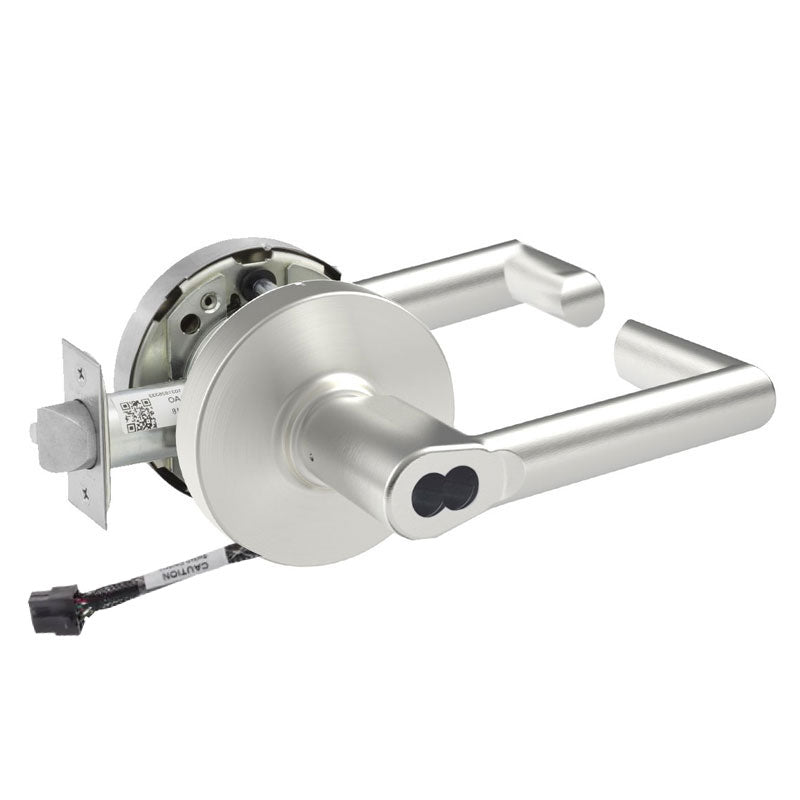

Sargent 70-RX-10XG04-LMW-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LMW-24V is a Grade 1 cylindrical storeroom function lock engineered for high-traffic commercial openings that demand both security and monitoring capability. This model features a built-in Request to Exit (RX) switch, allowing it to integrate seamlessly with access control and alarm systems by signaling when the interior lever is operated. Configured with the L rose and MW lever design, it operates on a 2-3/4" backset and includes a 4-7/8" strike. The lock accepts a small format interchangeable core (SFIC) and is furnished less core, giving facilities the flexibility to key it to their existing system. Built for durability and dependable everyday use.

Features

• Grade 1 cylindrical lock built for demanding commercial applications.
• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch supports access control and alarm system monitoring.
• 24V electrical configuration for compatibility with low-voltage systems.
• Accepts a small format interchangeable core and ships less core for field keying flexibility.
• MW lever with L rose provides a durable, ADA-friendly design.
• Standard 2-3/4" backset with a 4-7/8" ASA strike.

Functional Details

The storeroom (G04) function maintains constant security on the exterior while permitting immediate free egress from inside. The latchbolt is retracted by key from the outside only, and the inside lever is always active. The integrated RX switch monitors interior lever operation for system integration.

• Outside lever is always locked.
• Latchbolt retracted by key outside.
• Inside lever is always unlocked for immediate egress.
