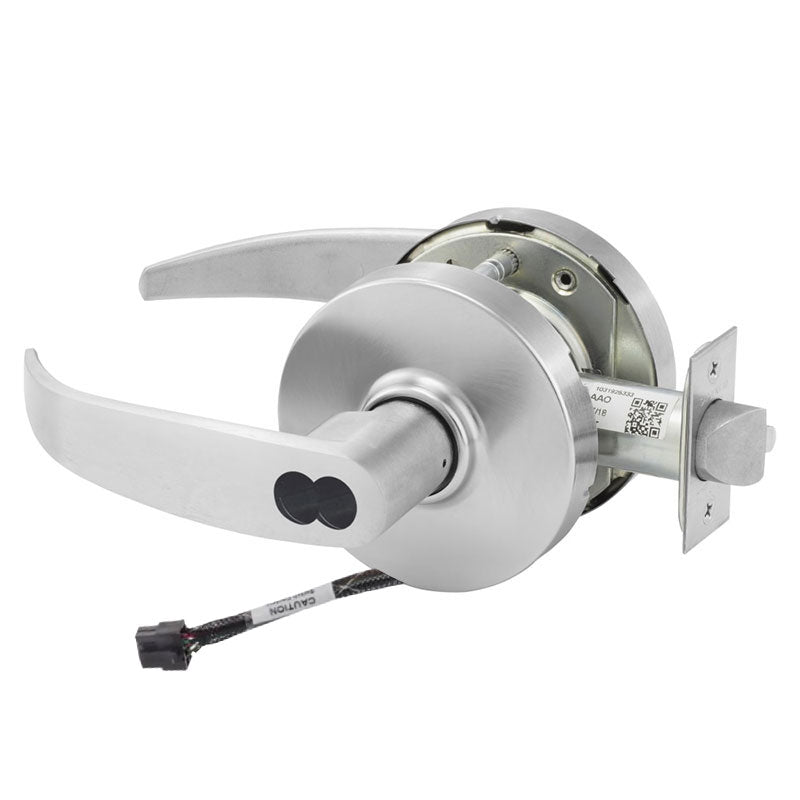

Sargent 70-RX-10XG04-LP-12V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LP-12V is a Grade 1 storeroom function cylindrical lock built for demanding commercial openings that require both durability and access control integration. It features a built-in Request to Exit (RX) switch that signals when the lever is operated, making it ideal for use with electronic access control and monitoring systems. Designed with the LP lever and L rose, this lockset delivers a clean, contemporary look while meeting ANSI/BHMA Grade 1 standards. It comes prepped for a small format interchangeable core and is furnished less core, giving facility managers the flexibility to key it to an existing system. A 2-3/4" backset and 4-7/8" strike round out its versatile installation profile.

Features

• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch supports access control and door monitoring applications.
• Accepts a small format interchangeable core (SFIC), furnished less core for keying flexibility.
• Grade 1 cylindrical construction engineered for heavy-duty commercial use.
• LP lever design paired with the L rose for a modern, ADA-compliant profile.
• Operates on 12V power for compatibility with common low-voltage systems.

Functional Details

The 10XG04 storeroom function provides secure control of the opening while never restricting egress. The outside lever remains locked and requires a key for entry, while the inside lever is always free to operate. The Request to Exit feature adds electronic signaling each time the inside lever is turned.

• Latchbolt operated by key from outside or by inside lever.
• Outside lever is fixed at all times.
• Auxiliary latch deadlocks latchbolt when door is closed.
