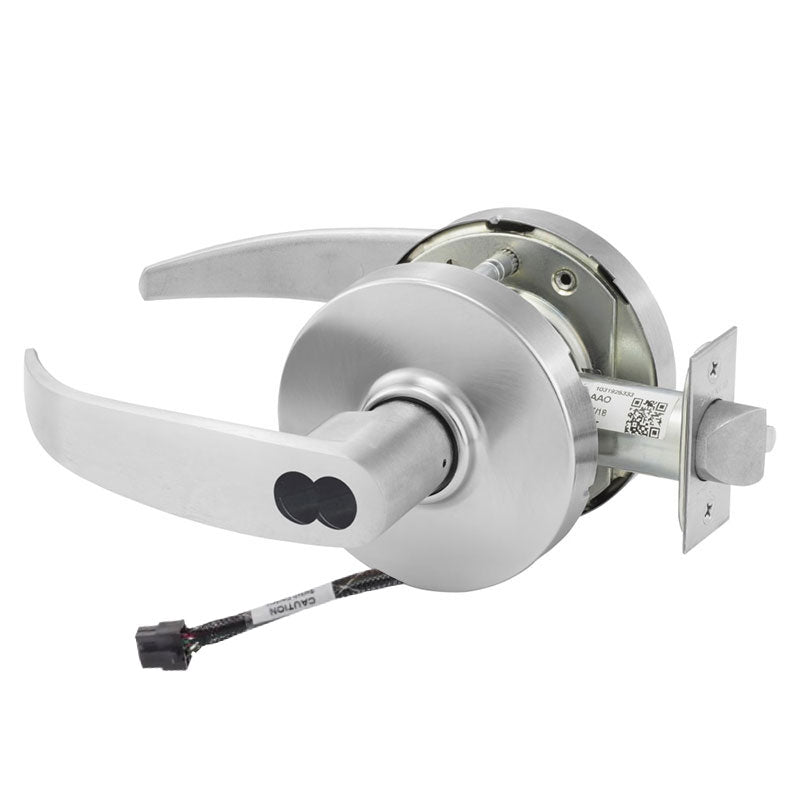

Sargent 70-RX-10XG04-LP-24V Storeroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG04-LP-24V is a Grade 1 cylindrical lock built for storeroom applications where controlled access and monitored egress matter. This lockset combines a durable storeroom function with an integrated Request to Exit (RX) switch, allowing it to signal an access control or monitoring system when the lever is operated from the inside. It features the LP lever on an L rose, a 2-3/4" backset, and a 4-7/8" strike. Furnished less core and prepped for a small format interchangeable core, it accommodates fast, tool-free rekeying and integrates smoothly into existing keying systems. The 24V operation supports electrified access control setups in commercial buildings.

Features

• Storeroom function keeps the outside lever locked at all times, retracting the latch only by key or from the inside.
• Integrated Request to Exit (RX) switch signals monitoring and access control systems when the interior lever is used.
• Accepts a small format interchangeable core and is furnished less core for flexible keying.
• Grade 1 rating from the 10X Line cylindrical lever lock series for heavy commercial duty.
• LP lever mounted on an L rose with a 2-3/4" backset and 4-7/8" strike.
• 24V electrified operation for integration with building access control.

Functional Details

The storeroom function locks the outside lever continuously. Entry requires a key, while the inside lever always allows free egress and simultaneously triggers the Request to Exit switch for system monitoring.

• Outside lever always locked.
• Latchbolt retracted by key from outside or by inside lever.
• Inside lever always active for immediate egress.
• Auxiliary latch deadlocks the latchbolt when the door is closed.
