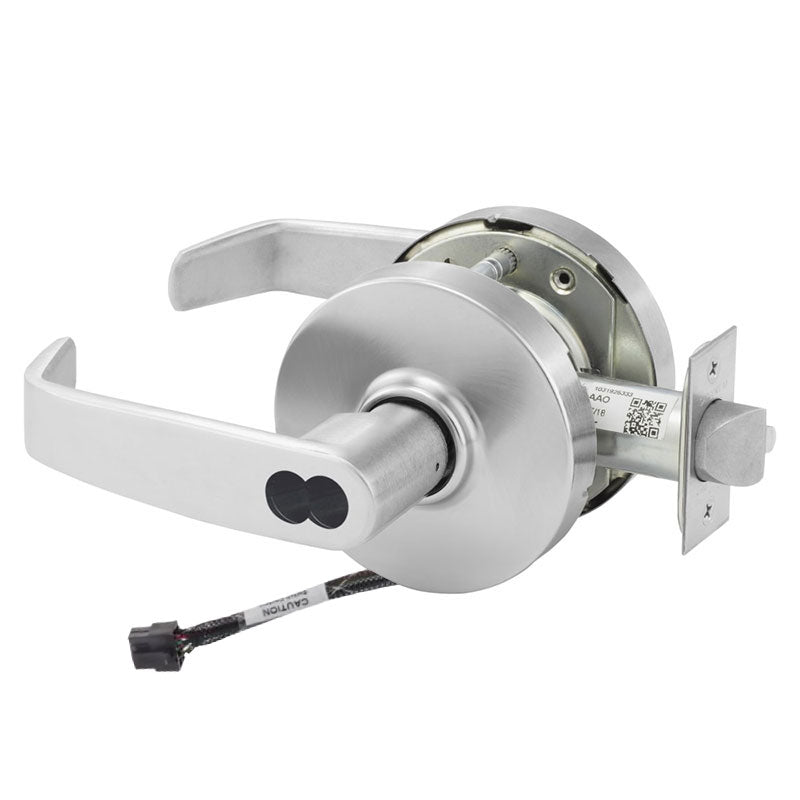

Sargent 70-RX-10XG05-LL-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, L Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LL-24V is a Grade 1 cylindrical lock built for entrance and office applications where secure, monitored access is essential. Part of Sargent's durable 10X Line, this lockset features the LL trim combination with an L rose and L lever for smooth, reliable operation. It comes with an integrated Request to Exit (RX) switch, allowing the lock to signal an access control or monitoring system when the lever is turned from the inside. Operating at 24V, it accepts a small format interchangeable core and is furnished less core, giving facilities the flexibility to install their own keying system. A standard 2-3/4" backset and 4-7/8" strike round out this dependable commercial lock.

Features

• Grade 1 cylindrical lever lock suited for high-traffic commercial openings.
• Entrance or office function provides versatile locking and access control.
• Built-in Request to Exit (RX) switch monitors interior lever operation.
• LL trim with L rose and L lever for a clean, ergonomic design.
• Small format interchangeable core (SFIC) design, furnished less core.
• 24V electrified operation for integration with access control systems.
• Standard 2-3/4" backset and 4-7/8" strike for common door prep.

Functional Details

The Entrance or Office function (G05) allows the outside lever to be locked or unlocked by key, while the Request to Exit feature reports each interior lever turn to a connected monitoring or access control system for tracking egress.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• When outside lever is locked, latchbolt is operated by key from outside or by inside lever.
• Inside lever is always free for immediate egress.
