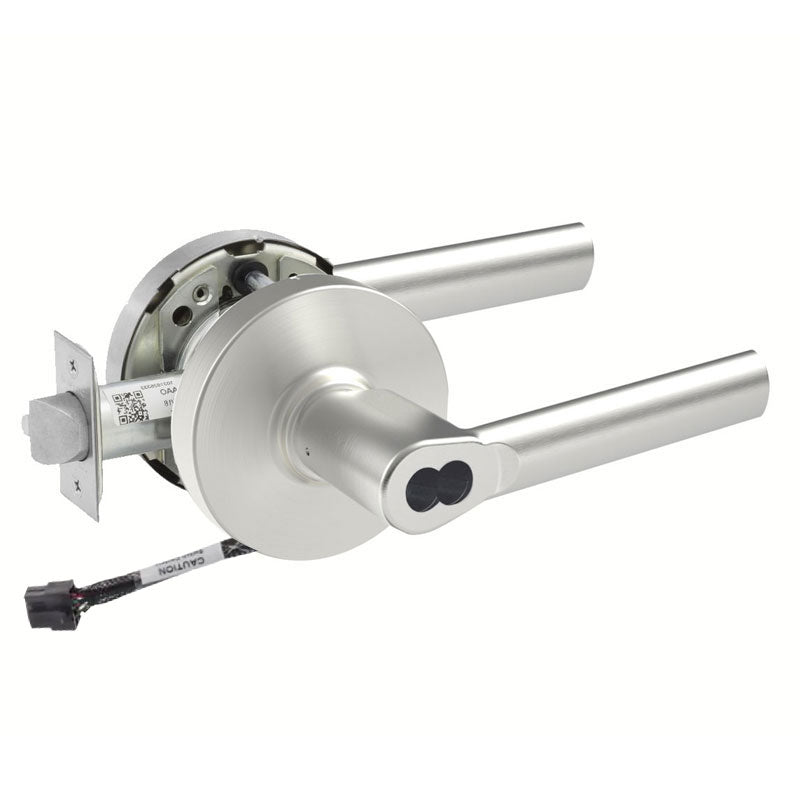

Sargent 70-RX-10XG05-LMB-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MB Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMB-24V is a Grade 1 cylindrical lock built for demanding commercial openings that require both secure access and electronic monitoring. Configured for Entrance or Office function, it includes a built-in Request-to-Exit (RX) switch that signals egress to an access control or alarm system. This lock features the LMB lever on an L rose and comes prepped for a small format interchangeable core, though it ships less core so you can pair it with your existing keying system. With a 2-3/4" backset, 4-7/8" ANSI strike, and 24V operation, it delivers dependable performance for offices, entrances, and controlled-access interiors.

Features

• Grade 1 cylindrical lever lock rated for heavy-duty commercial use.
• Entrance or Office function provides flexible locking and access control at the opening.
• Integrated Request-to-Exit (RX) switch monitors egress for access control systems.
• LMB lever paired with the L rose for a clean, durable trim design.
• Small format interchangeable core prep, furnished less core for field keying.
• 2-3/4" backset and 4-7/8" ANSI strike for standard door preparation.
• 24V operating voltage for compatibility with electrified hardware setups.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked by key or thumbturn, while the inside lever always retracts the latch for free egress. The Request-to-Exit switch activates when the inside lever is operated, sending a signal to shunt an alarm or notify the access control system that an authorized exit has occurred.

• Turn/push button locking. Latchbolt retracted by key outside or by lever inside unless outside lever is locked by turn/push button.
• When outside lever is locked, latchbolt is retracted by key outside or by rotating inside lever.
• Closing door releases button unless push button is depressed and turned.

Included Components

This lockset includes the LMB lever trim, L rose, ANSI strike, and integrated Request-to-Exit switch. A small format interchangeable core is not included and must be ordered separately.
