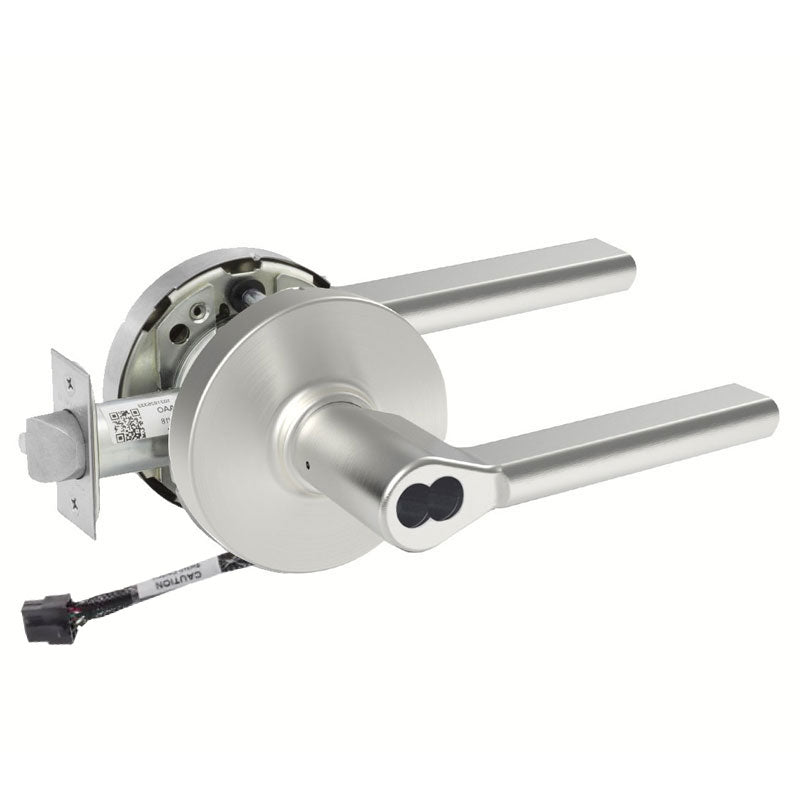

Sargent 70-RX-10XG05-LMD-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MD Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMD-12V is a Grade 1 cylindrical lock built for entrance and office applications where controlled access and monitored egress are essential. Part of Sargent's durable 10X Line, this lock features the MD lever on an L rose and an integrated Request to Exit (RX) switch that signals when the lever is operated. The 12-volt configuration supports electronic access control integration, while the small format interchangeable core design lets you install your preferred core (furnished less core). With a standard 2-3/4" backset and a 4-7/8" strike, it delivers reliable heavy-duty performance for commercial and institutional openings.

Features

• Grade 1 cylindrical lock rated for heavy-duty commercial use.
• Entrance or Office function (10XG05) for flexible access control.
• Built-in Request to Exit (RX) switch signals lever operation.
• 12-volt operation for electronic access control integration.
• MD lever mounted on an L rose for a clean, ergonomic design.
• Small format interchangeable core, furnished less core for keying flexibility.
• Standard 2-3/4" backset with a 4-7/8" strike.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked with a key or by a pushbutton, while the inside lever always allows free egress. The Request to Exit feature provides a monitoring signal to the access control system whenever the inside lever is turned.

• Latchbolt operated by lever from either side except when outside lever is locked by pushbutton or key.
• When outside lever is locked, latchbolt is operated by key in outside lever or by rotating inside lever.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This lock ships less core, allowing installation of a compatible small format interchangeable core to match your existing keying system. The unit includes the MD lever, L rose trim, latch, and strike.
