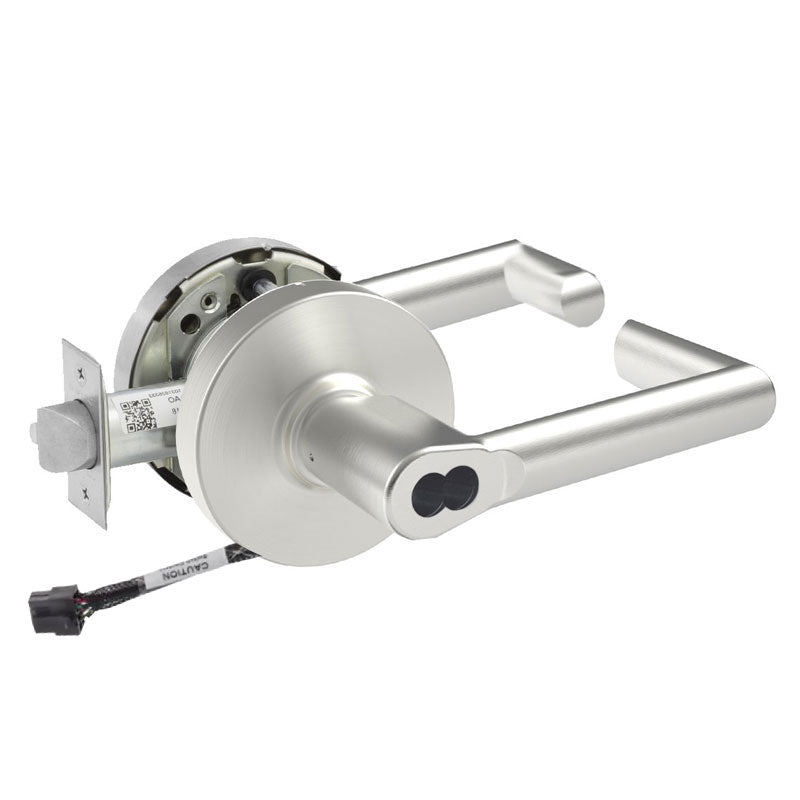

Sargent 70-RX-10XG05-LMW-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMW-12V is a Grade 1 cylindrical lever lock built for the demands of high-traffic commercial openings. Configured for Entrance or Office function, it lets occupants secure the outside lever by key or push-button while allowing free egress at all times. The integrated Request to Exit (RX) switch signals access control systems when the inside lever is operated, and the 12V wiring supports electronic monitoring. It ships with the MW lever on an L rose, a 2-3/4" backset, and a 4-7/8" strike. Furnished less core with a small format interchangeable core prep, this lock fits seamlessly into existing keying programs.

Features

• Grade 1 cylindrical lever lock rated for heavy commercial use.
• Entrance or Office function allows the outside lever to be locked by key or push-button.
• Built-in Request to Exit (RX) switch reports inside lever operation to access control systems.
• 12V operation for compatibility with electronic monitoring and building security.
• MW lever mounted on an L rose for a clean, durable trim design.
• Small format interchangeable core prep, furnished less core for flexible keying.
• Standard 2-3/4" backset with a 4-7/8" strike for common door preps.

Functional Details

The Entrance or Office function (G05) provides selectable security at the outside lever while maintaining continuous free egress from the inside. The Request to Exit feature adds an internal switch that communicates with access control hardware when someone exits.

• Deadlocking latch bolt.
• Outside lever locked or unlocked by key or push button in the inside lever.
• Auxiliary latch deadlocks the latch bolt when the door is closed.
• Inside lever always free for immediate egress.
