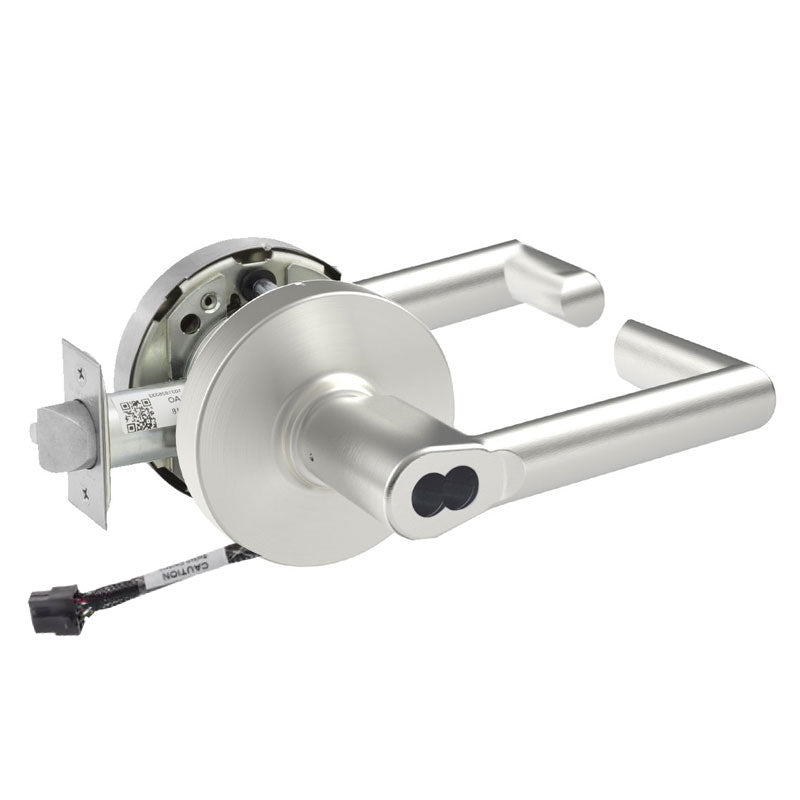

Sargent 70-RX-10XG05-LMW-24V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG05-LMW-24V is a Grade 1 cylindrical lever lock built for high-traffic commercial entrances and offices where reliable access control matters. This entrance/office function lockset features an integrated Request to Exit (RX) switch that signals the access control system when the lever is operated, making it well suited for electronically monitored openings. It comes with the LMW lever design, L rose, a standard 2-3/4" backset, and a 4-7/8" ANSI strike. Configured for a small format interchangeable core and furnished less core, it lets facilities standardize on their existing keying system. The 24V operation supports integration with electrified access hardware.

Features

• Grade 1 cylindrical lever lock rated for heavy commercial use.
• Entrance or Office function provides flexible access control at the opening.
• Built-in Request to Exit (RX) switch communicates lever operation to the access control system.
• LMW lever with L rose delivers a clean, durable trim design.
• Small format interchangeable core prep, furnished less core for existing keying systems.
• 2-3/4" backset with a 4-7/8" strike for standard door prep.
• 24V electrified operation for access control integration.

Functional Details

The Entrance or Office function allows the outside lever to be locked or unlocked, while the Request to Exit switch reports egress activity to a connected system whenever the inside lever is turned. This gives facilities both secure entry control and monitored, free egress.

• Turn/push button locking. Latchbolt operated by key outside when outside lever locked. Inside lever always active.
