Description

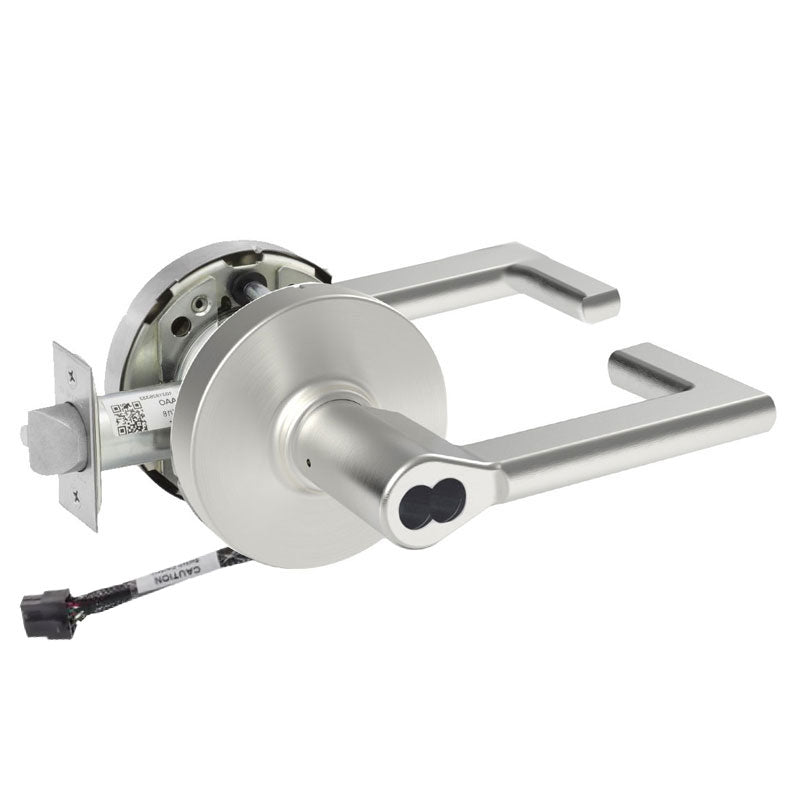

Sargent 70-RX-10XG05-LND-12V Entrance or Office Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1
The Sargent 70-RX-10XG05-LND-12V is a Grade 1 cylindrical lock built for demanding commercial openings that need reliable access control and monitoring. Configured for Entrance or Office function with a built-in Request to Exit (RX) switch, it signals egress activity to connected security systems while maintaining secure, everyday operation. This model features the LND lever on the L rose, a 2-3/4" backset, and a 4-7/8" strike. Furnished less a small format interchangeable core (SFIC), it allows keying to be added on-site with your preferred core. Operating on 12V, it's a dependable choice for offices, schools, and institutional facilities requiring durable hardware from Sargent's 10X Line.
Features
- Entrance or Office function provides flexible locking control for commercial doors.
- Integrated Request to Exit (RX) switch monitors egress and communicates with access control systems.
- Grade 1 cylindrical construction rated for heavy-duty commercial use.
- LND lever mounted on the L rose delivers durable, ADA-compliant operation.
- Accepts a small format interchangeable core (SFIC), furnished less core for field keying.
- 2-3/4" backset with a 4-7/8" strike for standard commercial door prep.
- Operates on 12V for compatibility with electrified access setups.
Functional Details
The Entrance/Office function (G05) allows the outside lever to be locked or unlocked by key, with the inside lever always free for immediate egress. The Request to Exit feature adds monitoring by sending a signal when the interior lever is used.
- Latchbolt operated by lever from either side except when outside lever is locked by key.
- Outside lever locked and unlocked by key.
- Inside lever always free for immediate egress.
Product Specifications
| Manufacturer | Sargent |
|---|---|
| SKU | 70-RX-10XG05-LND-12V |
| Grade | Grade 1 |
| Function | Entrance or Office (G05) |
| Lever/Rose | LND Lever, L Rose |
| Core Type | Small Format Interchangeable (Less Core) |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | A156.2, Series 4000 |
| UL Listing Type | UL Listed for 3-hour fire doors |
| BAA Qualified | Yes |
| Limited Warranty | Yes |
Technical Specifications
| Backset | 2-3/4" |
|---|---|
| Strike | 4-7/8" |
| Voltage | 12V |
| Latchbolt Throw | 1/2" |
| Door Thickness Range | 1-3/8" to 2" standard |
| Chassis Type | Cylindrical |
| Rose Diameter | 3-1/2" |
| Lever Return | Return to within 1/2" of door face |
| Monitoring | Request to Exit (RX) switch |
| Cycle Rating | Grade 1 (1,000,000+ cycles) |
| Cross Bore | 2-1/8" |
