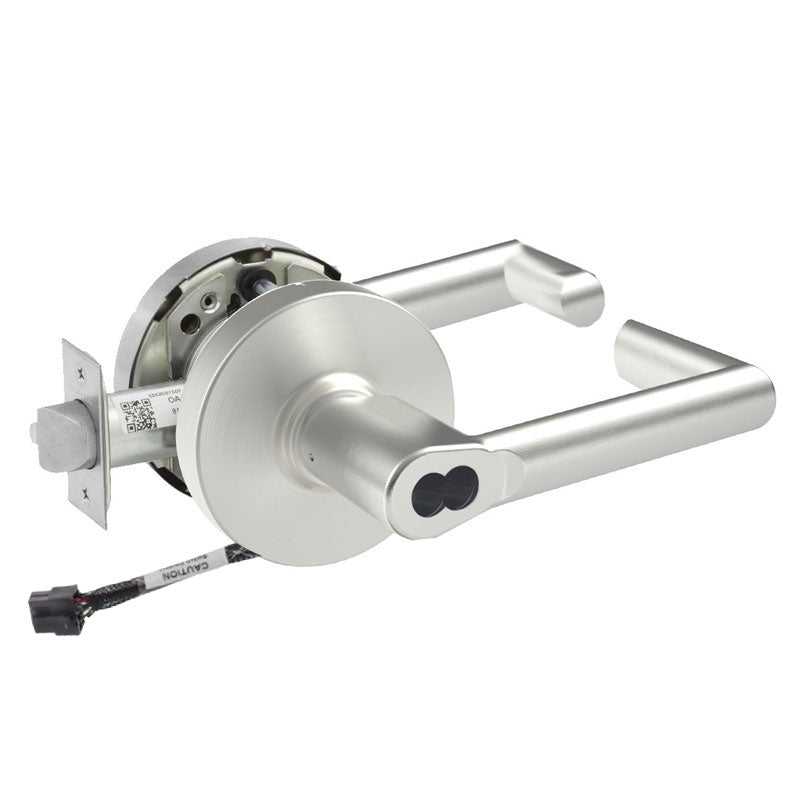

Sargent 70-RX-10XG37-LMW-24V Classroom Function Cylindrical Lock, Request to Exit, L Rose, MW Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG37-LMW-24V is a Grade 1 cylindrical classroom function lock built for high-traffic commercial and institutional openings. It combines dependable mechanical performance with an integrated Request-to-Exit (RX) switch, allowing the lock to communicate with access control and monitoring systems when the lever is operated. Featuring the MW lever on the L rose, this lockset accepts a small format interchangeable core and ships less core for easy keying to an existing system. With a 2-3/4" backset and 4-7/8" strike, it delivers heavy-duty security and reliable everyday use in schools, offices, and healthcare facilities where controlled classroom access is essential.

Features

• Classroom function allows the outside lever to be locked or unlocked by key, while the inside lever always allows free egress.
• Integrated Request-to-Exit (RX) switch signals access control systems when the lever is turned.
• Operates on 24V for compatibility with electrified access control setups.
• MW lever design paired with the L rose for a clean, durable appearance.
• Small format interchangeable core (SFIC) compatibility with the lock furnished less core.
• Grade 1 rated for the highest level of commercial durability.

Functional Details

The classroom function lets authorized staff control access from the corridor side using a key, while occupants inside can always exit freely. The built-in RX switch monitors lever activation for integration with electronic security systems.

• Latchbolt operated by lever from either side except when outside lever is locked by key.
• Outside lever locked and unlocked by key.
• When outside lever is locked, latchbolt is operated by inside lever or by key in outside.
• Inside lever always free for immediate egress.
