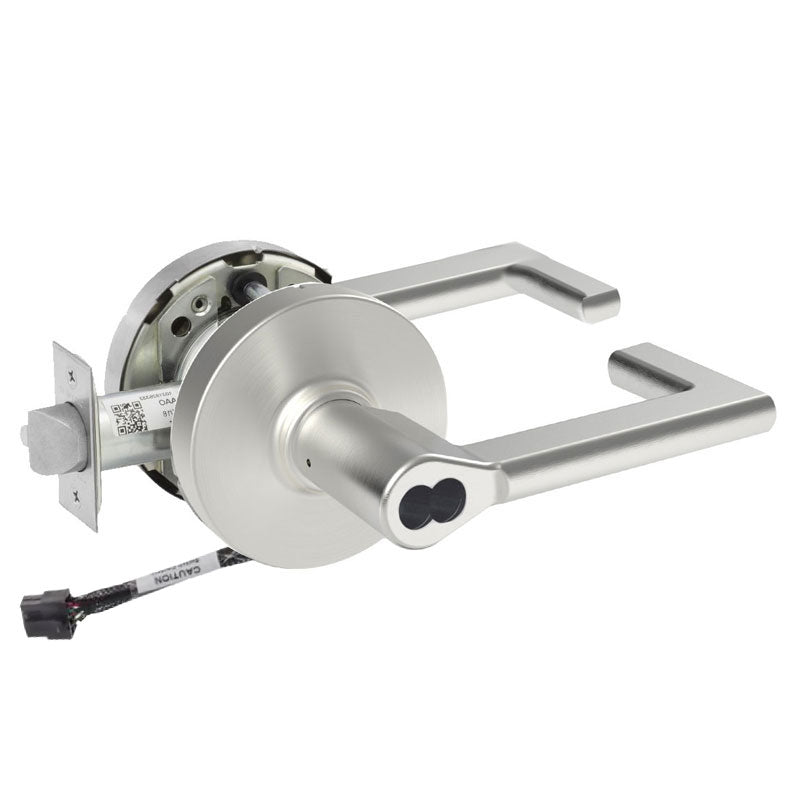

Sargent 70-RX-10XG37-LND-12V Classroom Function Cylindrical Lock, Request to Exit, L Rose, ND Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG37-LND-12V is a Grade 1 classroom function cylindrical lock built for demanding commercial and institutional openings. It combines the durable 10X Line chassis with a Request-to-Exit (RX) switch, allowing the lock to signal an access control or monitoring system when the lever is operated from the secure side. This model features the LND lever on an L rose and accepts a small format interchangeable core, though it is furnished less core so you can key it into an existing system. With a 2-3/4" backset and 4-7/8" strike, it is ready for standard door prep and 12V operation.

Features

• Grade 1 cylindrical lock engineered for heavy-duty commercial use.
• Classroom function provides secure control from the outside lever while allowing free egress.
• Integrated Request-to-Exit (RX) switch for signaling access control systems.
• LND lever design paired with the L rose for a clean, ergonomic appearance.
• Accepts a small format interchangeable core, furnished less core for flexible keying.
• 2-3/4" backset with a 4-7/8" ANSI strike for standard door preparation.
• Operates on 12V for compatibility with electrified access control setups.

Functional Details

The classroom function locks and unlocks the outside lever by key, while the inside lever always allows free egress. The Request-to-Exit switch reports lever activation to a connected system for monitoring and alarm shunting.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Latchbolt operated by lever from either side except when outside is locked.
