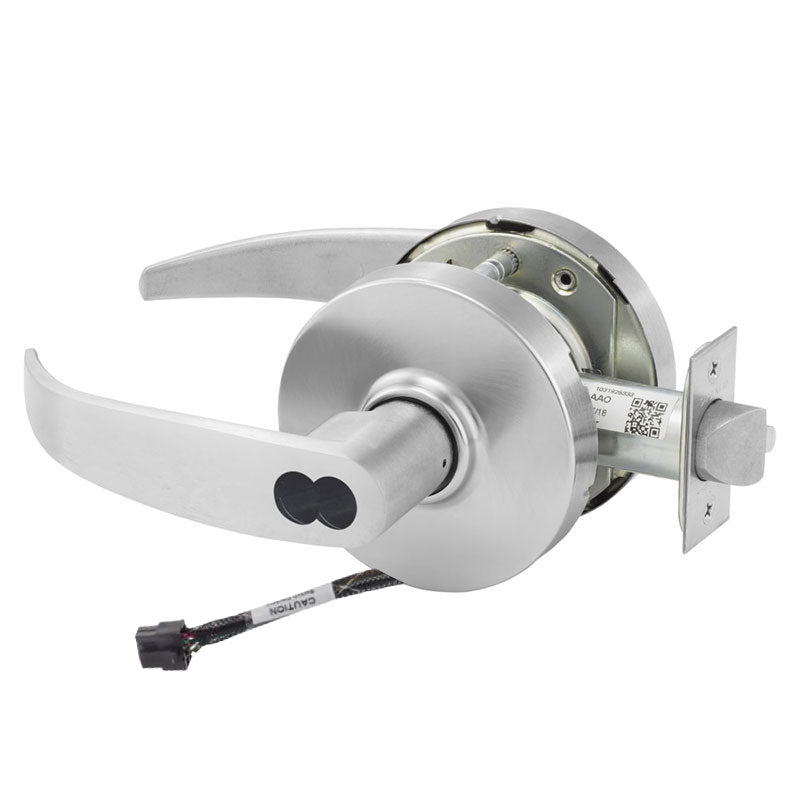

Sargent 70-RX-10XG37-LP-12V Classroom Function Cylindrical Lock, Request to Exit, L Rose, P Lever, 2-3/4" Backset, 4-7/8" Strike, Small Format Interchangeable, Furnished Less Core, Grade 1

The Sargent 70-RX-10XG37-LP-12V is a Grade 1 classroom function cylindrical lock built for high-traffic commercial and institutional openings. It combines the durable 10X Line chassis with a Request-to-Exit (RX) switch that monitors latch retraction for access control integration, plus 12-volt electrified operation. This lockset features the LP lever on the L rose and is prepared for a small format interchangeable core, furnished less core so you can key it to your existing system. With a standard 2-3/4" backset and 4-7/8" strike, it offers the reliability and code compliance schools, hospitals, and offices depend on for secure, controlled access.

Features

• Classroom function keeps the outside lever locked or unlocked by key while the inside lever always allows free egress.
• Integrated Request-to-Exit (RX) switch signals when the inside lever is used for access control monitoring.
• 12-volt electrified operation for connection to compatible access control systems.
• Accepts a small format interchangeable core and is furnished less core for flexible keying.
• LP lever design paired with the L rose for a clean, durable trim appearance.
• Grade 1 rated for the highest level of commercial durability and performance.

Functional Details

The classroom function allows an authorized user to lock or unlock the outside lever by key, while the inside lever always retracts the latch for immediate, unobstructed egress. The Request-to-Exit switch reports interior lever activation to an access control panel.

• Outside lever locked or unlocked by key.
• Inside lever always free for immediate egress.
• Latchbolt retracted by lever from either side except when outside is locked by key.
