All SARGENT Products

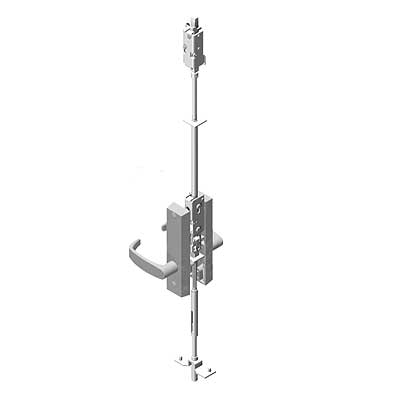

Sargent 707415-ETL-24V-26D-84-LHR-KD Vertical Rod Multi Point Lock, Outside Function - Fail Secure, Inside Function - Passage, L Lever, LA keyway, LHR, Satin Chrome

  • SKU: 707415ETL24V26DLHRKD
$2,704.00/ea
Available (1 Week)
1 Week Lead Time
Choose Your Product Options:
Wool Color
Braid Color *
Collar (In Inches) *
Chest Natural (In Inches) *
Waist Natural (In Inches) *
Sleeve Length Natural (In Inches) *
Across Shoulder Natural (In Inches) *
Back Length Under Collar To Waist (In Inches) *
Buttons *
Bagpipe / Drum Badge *
Pipe Major / Drum Major Badge *
King s / Queen s Crown *

Product Specs

For Doors

Metal doors, 1-3/4" (44mm) door thickness standard,
4-1/2" minimum stile, 2-1/4" backset standard

Mounting

Supplied fasteners are for metal doors with through-bolts for trim

Handing

LHR - Left Hand Reverse

Top and Bottom Bolts

Stainless steel. Top and bottom bolt travels 7/16" (11mm) Projection adjustable up to 1" (25mm)

Trim

ET Trim with L Lever

Function:

Outside Function: Electrified Fail Secure (74)
Inside Function: Passage (15)

    The Sargent 707415-ETL-26D-84-LHR-KD is a Vertical Rod Multipoint lock, which features an electrified fail secure outside function and inside passage function. It comes in LA Keyway, Keyed Random with 2 Keys, and has ET Trim and an L Lever, in a Left Hand Reverse in US26D Satin Chrome Finish.

    Sargent Multi Lock Combination Functions

    • Designed for metal door applications with 2-1/4" Backset
    •  Concealed rods offer additional security
    • Less bottom rod option available, specified as NB-7000 and 12-NB-7000 (For single door applications, consult factory)
    • NB- provides free access for wheel chairs and carts
    • Single or double door applications
    • UL Fire Listed: 12-7000 / 12-NB-7000 (12-NB- is for double door applications only)
    • UL Certified to ZHEM.R
