Technical Specs
| Device Type | Trim |
| Handed | Yes |
| Electric Options | Fail-Secure |
| Trim Type | Electrified Lever |
| Trim Design | NU - Lever |
| Fire Rated | No |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Unit of Measure | Each |
| Application | For 8400 and 8600 Series Concealed Vertical Rod Exit Devices |
| Base Material | Brass |
| ADA | Yes |

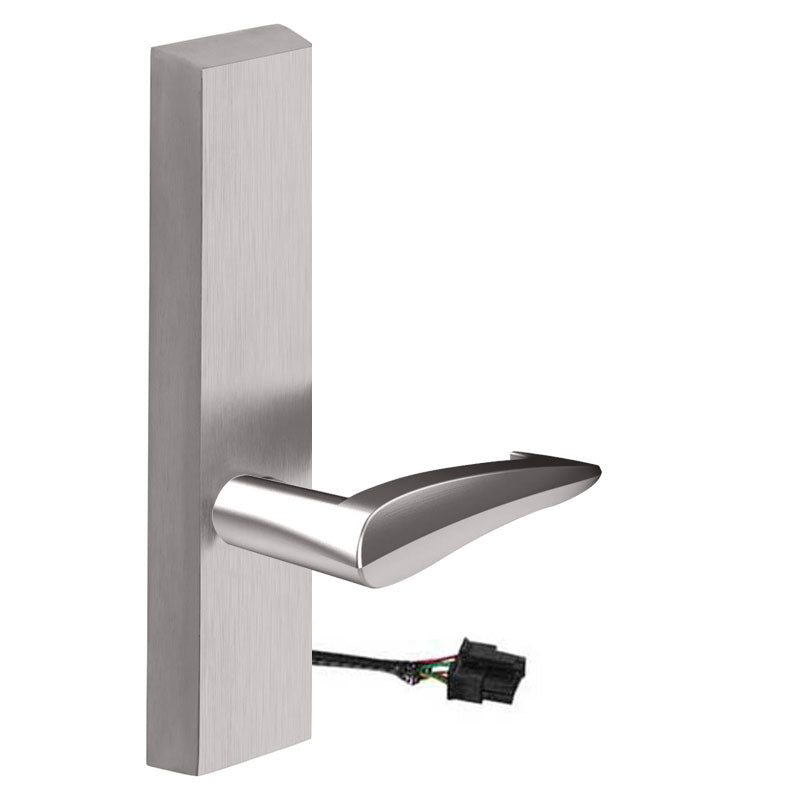

Sargent 774-4-ETNU-24V Electrified Lever Trim, "ET" NU Lever, Fail Secure, 24V, For 8400 and 8600 Series Exit Devices, No Cylinder
The Sargent 774-4-ETNU-24V Electrified Exit Device Trim features an NU lever, fail secure mechanism, and 24V power with lever locks that function even when the power is off. Designed for use with 8400 and 8600 Series Exit Devices, this trim does not require a cylinder.
This Trim Works With:
- Sargent 8474 Concealed Vertical Rod Exit Devices
- Sargent 8674 Concealed Vertical Rod Exit Devices
- Sargent 8610 Multi-Function Concealed Vertical Rod Exit Devices
Electrified ET Trim Voltage Specify: 24 VDC
| Function Number | Description & Cylinder Info(1-3/4" Door) | ANSI Type 1 8800 Panic |
| 74 | Electrified ET Trim - Fail Secure Power Off, Locks Lever (No Cylinder) |
8874 x ET_ |
