Technical Specs
| Function |
04 Storeroom Function
|
| ANSI Function |
F07 - Storeroom/Exit |
| Lever/Knob Design |
J - Lever |
| Rose/Escutcheon Design |
LN - Rose |
| Cylinder Type |
Conventional Cylinder |
| Num Pins |
6 |
| Std. Keyway |
LA |
| Keying |
Keyed Different |
| Key(s) |
Cut |
| Num of Keys |
2 |
| Handing |
Field Reversible |
| Door Thickness |
1-3/4 In. |
| Std. Latch Type |
Dead Latch (Guarded) |
| Std. Latch Backset Dim |
2-3/4 In. |
| Lock Face Size |
8 In. x 1-1/4 In. |
| Bolt Projection |
3/4 In. Latch |
| Std. Strike Number |
82-0110 |
| Std. Strike Type |
ASA Strike |
| Std. Strike Height |
4-7/8 In. |
| Std. Strike Width |
1-1/4 In. |
| Screws |
Combination |
| Product Type |
Mortise Lock |
Product Specs
| Manufacturer |
Sargent |
| Grade |
Grade 1 |
| Origin |
USA |
| Unit of Measure |
Each |
| BAA Qualified |
Yes |
| Limited Warranty |
10 Years |
| Fire Rated |
2 Hours {B} |

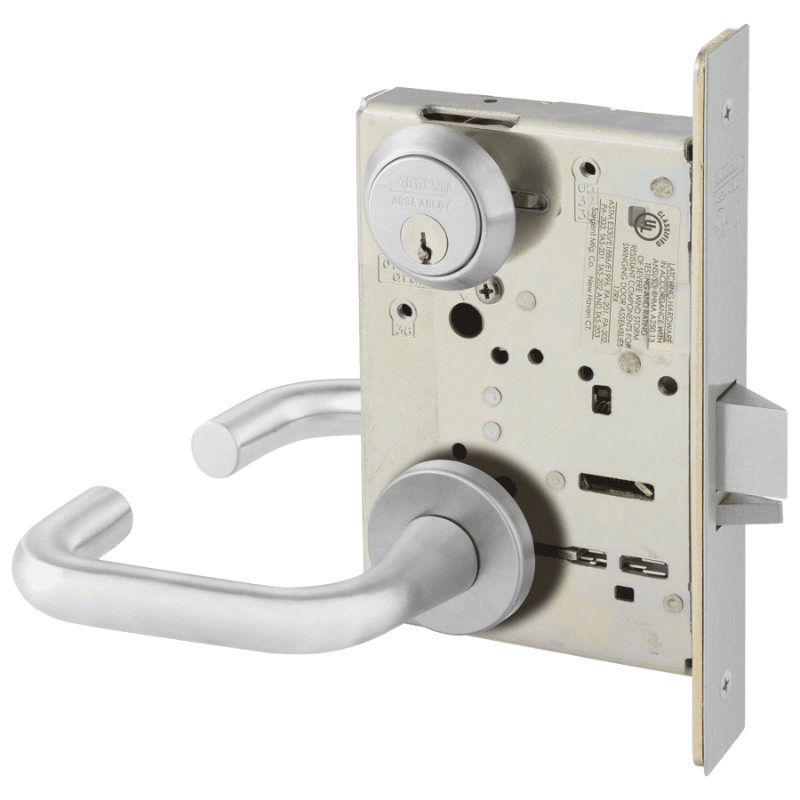

The Sargent 8204-LNJ-26D is a Grade 1 Heavy Duty Storeroom or Closet Function Mortise Lock with an LN Rose, a J Lever, an LA Keyway, Keyed Random, and comes in a Satin Chrome Finish. Sargent 8204 LNJ 26D has a 2-3/4" backset, and is for use on 1-3/4" thick doors.
