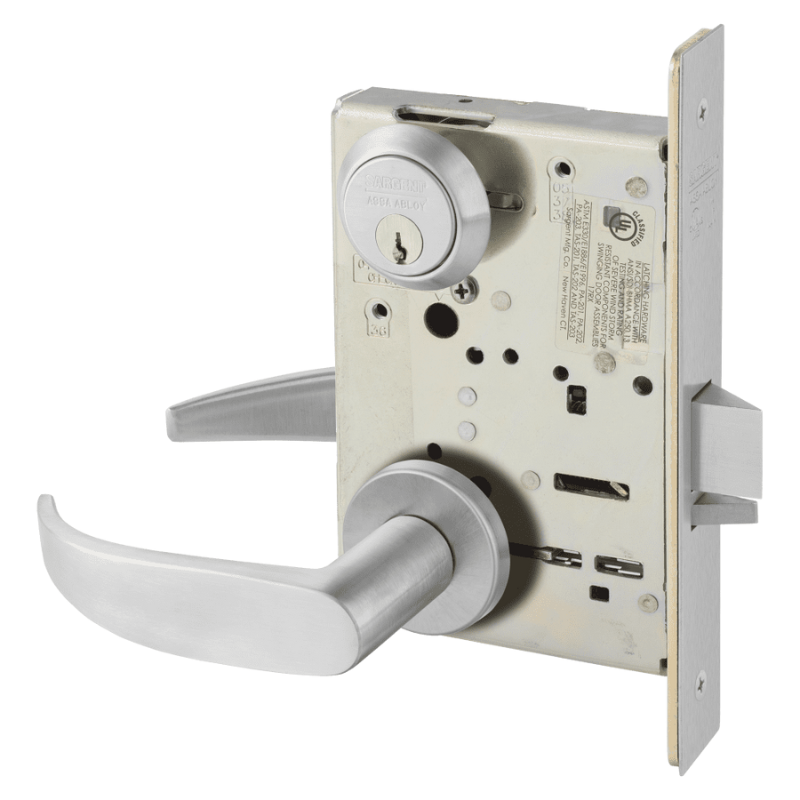

Sargent 8204-LNP-26D Storeroom or Closet Function Mortise Lock, LA Keyway, LN Rose, P Lever, Satin Chrome

  • SKU: 8204LNP26D

Sargent 8204-LNP-26D Storeroom or Closet Function Mortise Lock, LA Keyway, LN Rose, P Lever, Satin Chrome

  • SKU: 8204LNP26D
Sale price$1,055.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time

The Sargent 8204-LNP-26D Mortise Lock comes LA Keyway Standard with a Storeroom or Closet Function (Key Retracts Latch), an LN Rose, and a P lever in a Satin Chrome Finish.

8200 Series Mortise Lock

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

Manufacturer Sargent
Grade Grade 1
Origin USA
Unit of Measure Each
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 2 Hours {B}



Function 04 Storeroom Function
ANSI Function
F07 - Storeroom/Exit
Lever/Knob Design
P - Lever
Rose/Escutcheon Design
LN - Rose
Cylinder Type
Conventional Cylinder
Num Pins 6
Std. Keyway LA
Keying Keyed Different
Key(s) Cut
Num of Keys 2
Handing Field Reversible
Door Thickness 1-3/4 In.
Std. Latch Type Dead Latch (Guarded)
Std. Latch Backset Dim 2-3/4 In.
Lock Face Size 8 In. x 1-1/4 In.
Bolt Projection 3/4 In. Latch
Std. Strike Number 82-0110
Std. Strike Type ASA Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Combination
Product Type Mortise Lock

Cylinder Mortise Handing Chart
